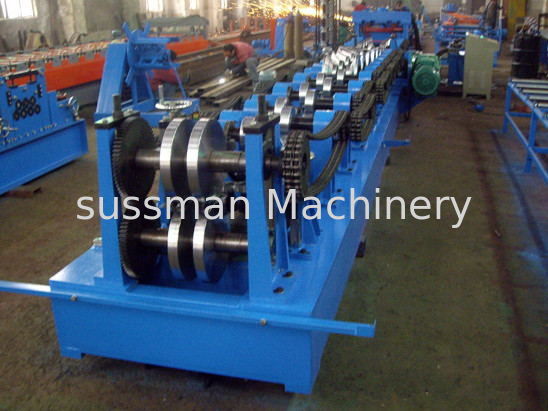

15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission
  • 15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission
  • 15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission

15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission

Place of Origin China
Brand Name Sussman
Certification SGS.CE.ISO
Model Number SM-CP
Product Details
Material Thickness:
1.5-3.0mm
Roller Stations:
13 Stations
Main Power:
11KW
Hydraulic Stations Power:
5.5KW
Power Supplier:
380V, 50HZ,3 Phase
Weight:
5 Tons
Forming Speed:
10-12M/MIN
High Light:

c z purlin roll forming machine

,

z purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
film and steel
Delivery Time
75 days
Payment Terms
L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability
10 sets per month
Product Description

15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission



Specification



1). Save Cost

2). High Efficency
3). European quality, work smoothly





 C Purlin Technical Parameter






Items

Specifications

Material of coil

Material Thickness

1.5-3.0 mm

De-coiler

Weight

3 tons passive

Forming system

Rolling Speed

10-12 M/MIN

Roller Stations

About 13 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 75mm shaft



Hydraulic cutting Power

5.5 kw

Cutting

system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Electrical control system

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand



Weight

About 4 tons



Way Of Drive

1 inch single chain



Size of machine

Length 7300mm* Width 800mm* Height 1000mm





Main Components



Name

Quantity

3 ton Passive de-coiler

1 set

Main roll forming machine

1 set

Feeding with guide

1 set

Control box

1 unit

Hydraulic station and punching

1 unit

Out tables

2 units





Product line


Uncoiling—Feeding—Rollforming—Cutting—Products collecting







Profile and Drawing Of Product



15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission 0





Loading pictures



All rollers will be brushed unti-rusty oil, and packed with waterproof plastic film.
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film.


15-20 MPa Hydraulic Pressure C Z Purlins Rolling Machine With Chain Transmission 1



Our Service



> Warranty: 12 months.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free.
> We will provide the technical support for the whole life of the equipment.
