Metal Shutter Door Roll Forming Machine

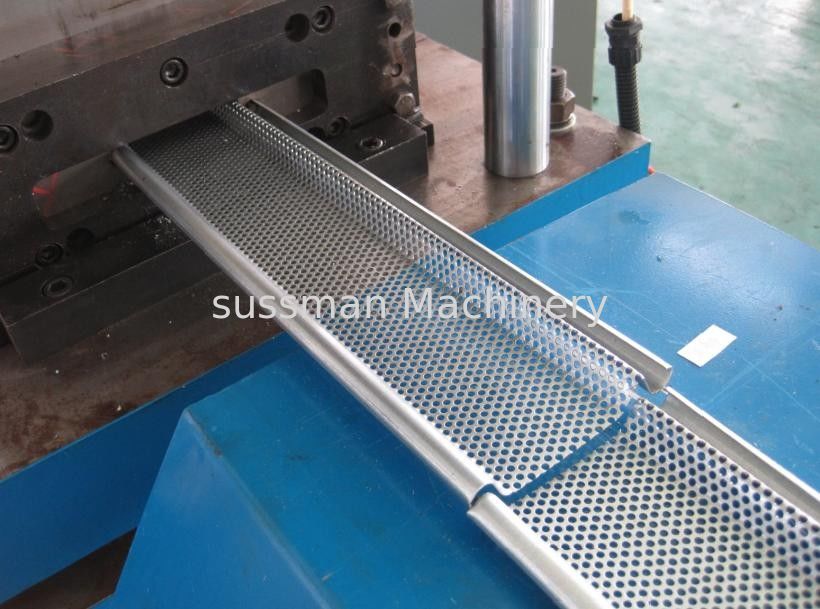

Large Image : Metal Shutter Door Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	Sussman
Certification:	SGS.ISO,CE
Model Number:	SH-OP

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard package with film, plastic and steel wire.
Delivery Time:	Shipped in 75 working days after payment
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Contact Now

Metal Shutter Door Roll Forming Machine

Description

Roller Stations:	12 Stations	Material Thickness:	0.4-1.2mm
Main Motor Power:	7.5Kw	Roller Material:	45# Steel
Cutting Blade Material:	Cr12	Hydraulic Cutting Pressure:	10-12Mpa
Forming Speed:	8-15m/min	Cutting:	Hydraulic Cutting
Control System:	PLC With Touch Screen	Dirve System:	Single Chain
High Light:	cold roll forming machine , rolling form machine

Shutter Door Roll Forming Machine

Machine Technical Data

Material Thickness	0.4-1.2mm, stainless steel
Forming speed	10-12m/min
Forming stations	about 20 stations
Main motor power	7.5Kw
Roller material	45# steel
shaft material	45# steel
Cutting blade material	Cr12
Hydraulic cutting pressure	10-12Mpa
Cutting blade material	Cr12

Production Line Machine List

Serial No.	Commodity & Description	Quantity
1	3T manual uncoiler	1 set
2	feeding guiding	1 set
3	Main roll forming machine	1 set
4	Output table	1 set
5	Main drive gear box	1 set
6	Fly saw cutting	1 set
7	Controlling system (including cabinet)	1 set
8	Water cooling system	1 set
9	Cassette	2 sets

Advantage for Roll Forming Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Afrer-sales service

Standard Profile :

Metal Shutter Door Roll Forming Machine 2

Working Flow of Octagon Pipe Roll Forming Machine

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

Photo Gallery

Metal Shutter Door Roll Forming Machine 4

Octagon Pipe Shutter Door Roll Forming Machine 7.jpg

Metal Shutter Door Roll Forming Machine 8

Metal Shutter Door Roll Forming Machine 9

Metal Shutter Door Roll Forming Machine 10

Customer Visiting

On promotion mental door frame machine
