GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov

China GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov supplier
GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov supplier GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov supplier GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov supplier

Large Image :  GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE ISO 9001
Model Number: SM-RS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Packing with steel wire fixed and film coated
Delivery Time: 75 days
Payment Terms: L/C, T/T
Supply Ability: 5 set per month
Contact Now
Detailed Product Description
Material: 0.7-1.2mm Galvanized Steel Forming Stations: 18 Stations
Dirve System: Chain Drive Power Supply: 380V, 50Hz, 3Phase
Forming Speed: 3-5m/min Length: Variable From 0-10000mm
Main Motor Power: 7.5KW

GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov





Name

Description

Suitable raw material 0.7-1.2mm galvanized coil S235JR
Material width 200-600mm
Forming stations 18 stations
Material of Roller Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: >150
Material of Main Shaft: 45# high quality steel (diameter>50)
Driven system Chain Driven 1.5 inches
Chains’ material 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
Cutting Hydraulic Cutting Cr12mov
Material of Cutting Knife Cr12Mov, Quench HRC58-62
Hydraulic Station Power 4KW
Control system PLC Panasonic with touch screen





Rack Shelf Machine Components


                                             Main Components
De-coiler
1 set
Leveling device
1 set
Roll forming machine
1 set
Punching device
2 sets
Hydraulic cutting and bending device
1 set
Hydraulic station
1 set
PLC control box
1 set
Safety cover
1 set
Ran out table
2 sets
Control panel
1 set





Working flow of Rack Shelf Machine



De-coiler—→Level device —→ Hydraulic punching notch—→Main roll forming machine—→Hydraulic cutting&Bending—→ Run out table





Advantages of Heavy Duty Pallet Racking


1.It is suitable to be used in factories, manufactures and warehouse
2.Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm
3.Perfect for storing categorized products in a neat and tidy way
4.heavy-duty shelf set for warehouse shelving
5.Strong structure
6.Easy installation
7.Customization is acceptable

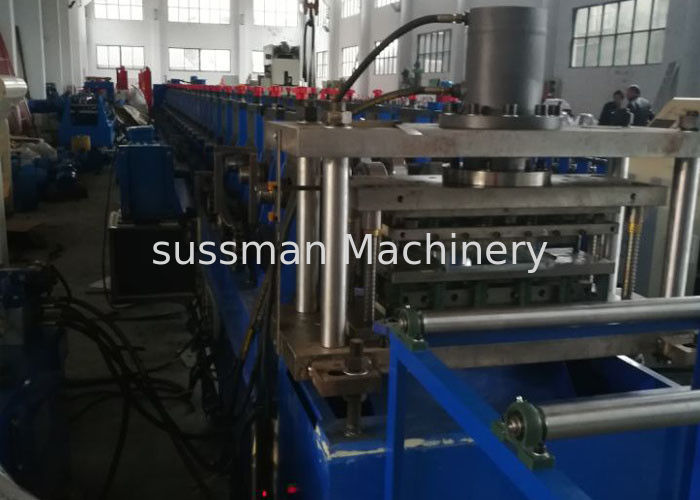

Rack Shelf Machine Picture

GCR15 Roller Material Rack Rolling Machine , Shelf Cold Forming Machine With Cr12Mov





FAQ



1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2. Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
5. How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi station), half an hour.
6. What's the warranty period?
18 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
