18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive

China 18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive supplier
18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive supplier 18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive supplier 18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive supplier

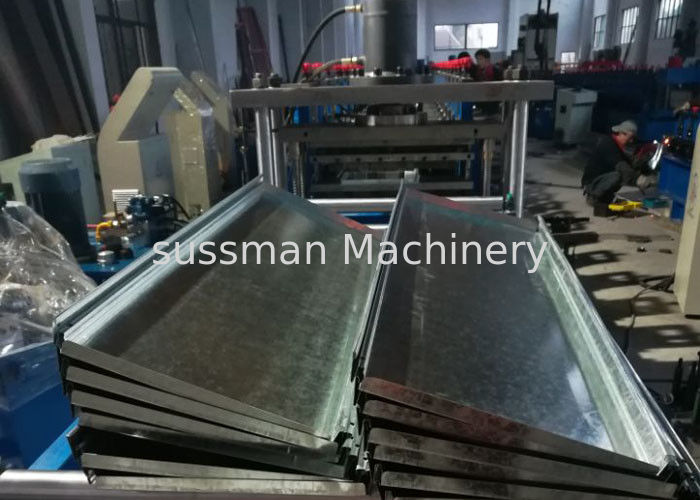

Large Image :  18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE ISO 9001
Model Number: SM-RS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Packing with steel wire fixed and film coated
Delivery Time: 75 days
Payment Terms: L/C, T/T
Supply Ability: 5 set per month
Contact Now
Detailed Product Description
Material Width: 200-600mm Material: 0.7-1.2mm Galvanized Steel
Dirve System: Chain Drive Power Supply: 380V, 50Hz, 3Phase
Forming Speed: 3-5m/min Length: Variable From 0-10000mm
Main Motor Power: 7.5KW Forming Stations: 18 Stations
Material Of Main Shaft: 45# High Quality Steel



18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive



This shelf production line is combined with decoiler, feeding system, leveler system,punching system, forming system , cutting system , electric control system , etc.





Rack Shelf Machine Parameters



Name

Description

Forming stations



18 stations



Material of Roller

Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: >150



Suitable raw material

 0.7-1.2mm galvanized coil S235JR

Material width



200-600mm

Material of Main Shaft



45# high quality steel (diameter>50)

Driven system



Chain Driven 1.5 inches
Chains’ material 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13

Cutting



Hydraulic Cutting Cr12mov

Material of Cutting Knife



Cr12Mov, Quench HRC58-62

Hydraulic Station Power



4KW

Control system



PLC Panasonic with touch screen





Rack Shelf Machine Specifications

1. Manual uncoiler

a) Coil inner diameter : 460-520MM.
b) Coil/strip width: 300- 500MM.
c) Load capacity – 5T
d) Stands on a wheeled base to allow transverse strip adjustment.


2. Roll forming


In order to keep the product shape and precision, adopts welded sheet

structure, motor reducer drive, chain transmission,roller surfaces polishing, hard planting, heat treatment and galvanization treatment



3. Hydraulic cutting


It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one
cutter machine.
