GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable

China GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable supplier
GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable supplier GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable supplier GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable supplier GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable supplier

Large Image :  GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE ISO 9001
Model Number: SM-RS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Packing with steel wire fixed and film coated
Delivery Time: 75 days
Payment Terms: L/C, T/T
Supply Ability: 5 set per month
Contact Now
Detailed Product Description
Length: Variable From 0-10000mm Dirve System: Chain Drive
Power Supply: 380V, 50Hz, 3Phase Forming Speed: 3-5m/min
Main Motor Power: 7.5KW Forming Stations: 18 Stations
Material Of Main Shaft: 45# High Quality Steel Material: 0.7-1.2mm Galvanized Steel
Material Width: 200-600mm Width Adjustable


GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable


Rack Shelf Machine Parameters


Configurations

Manual Uncoiler ,Guiding Platform ,Main Body Of Roll Forming Machine, Electro-Motor, Punch Device ,Cutting&Bending Device ,Hydraulic Station ,PLC Control.

Control System

PLC Panasonic Inverter

Main Frame

350mm H-Beam

Main Power

7.5 kw

Pump Power

4kw

Power Supply

3-Phase,380V,50Hz

Forming Speed

3-5m/min

Hydraulic Pressure

20MPa

Roller Station

18 Stands

Backboard Thickness

18mm

Cutter Standard

Cr12Mov

Roller Standard

Gcr15

Overall Size

12000×2000×900mm

Total Weight

8T







                    Main Components

Roll forming machine

1 set

Control panel

1 set

Leveling device

1 set

Punching device

2 sets

Hydraulic cutting and bending device

1 set

Hydraulic station

1 set

Safety cover

1 set

Ran out table

2 sets

De-coiler

1 set

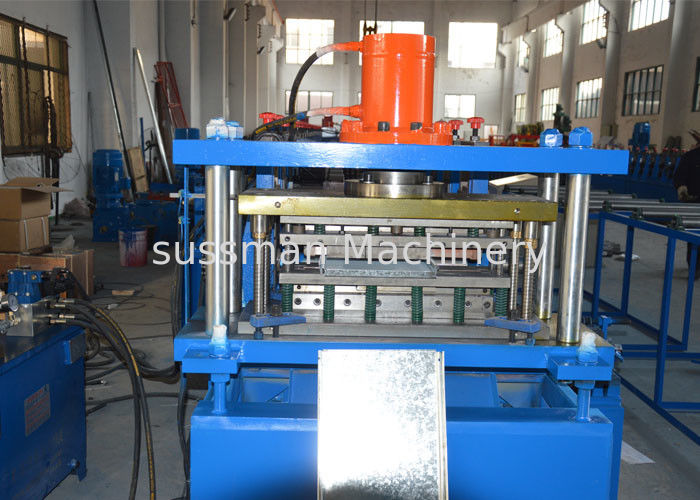

Rack Shelf Machine Picture

GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable
GCr15 Steel Shelving Rack Roll Forming Machine 200-600mm Width Adjustable


FAQ

1.Does one machine can only produce one size?
Not exactly, it depends on the machine.
2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. You are trade company or factory?
We are Manufacturer.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 75 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.
7.What's the warranty period?
18 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
