Galvanized Steel Roof Panel Roll Forming Machine , Profile Sheet Roofing Machine Customized

China Galvanized Steel Roof Panel Roll Forming Machine , Profile Sheet Roofing Machine Customized supplier
Galvanized Steel Roof Panel Roll Forming Machine , Profile Sheet Roofing Machine Customized supplier Galvanized Steel Roof Panel Roll Forming Machine , Profile Sheet Roofing Machine Customized supplier Galvanized Steel Roof Panel Roll Forming Machine , Profile Sheet Roofing Machine Customized supplier

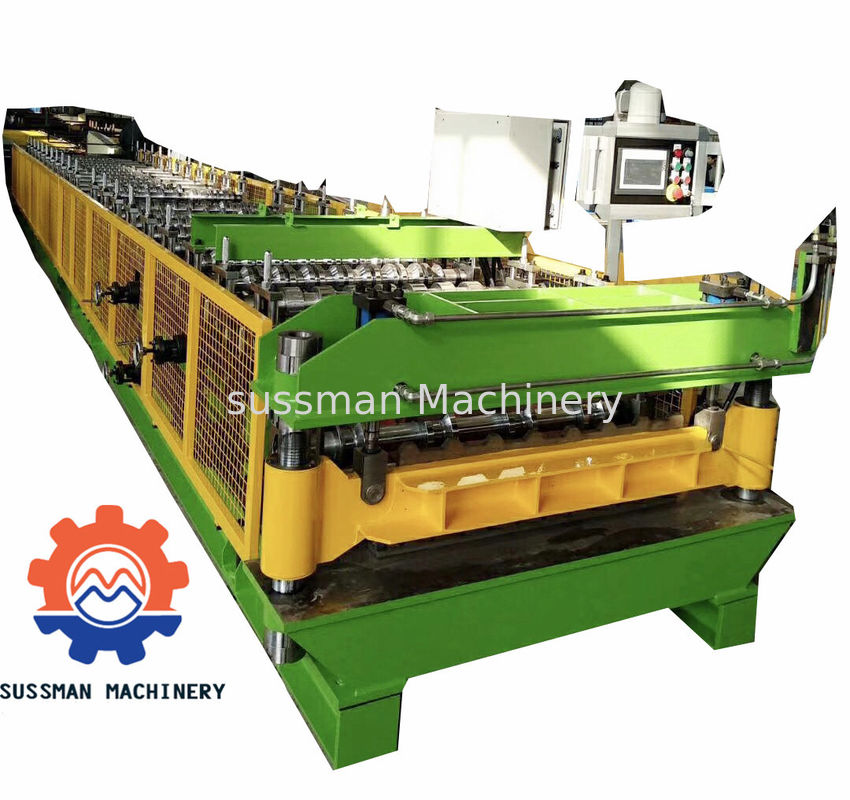

Large Image :  Galvanized Steel Roof Panel Roll Forming Machine , Profile Sheet Roofing Machine Customized

Product Details:

Place of Origin: China
Brand Name: SUSSMAN
Certification: SGS.CE.ISO
Model Number: SS-FD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and Steel
Delivery Time: 60-80 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Galvanized Steel 10-12m/min Roof Panel Roll Forming Machine Customized Material: 10-12m/min
Material Thickness: 0.3-0.8mm Color Painted Sheets Roller Stations: About 14 Stations
Main Motor Power: 7.5kw Tolerance: +-1.5mm

Galvanized Steel 14 stations roof panel Roll Forming Machine Customized


 Technical Parameter


Roll Forming Machine: RF-RP

Rolling Speed : 10-12m/min(cutting time is not include)

Steel sheet Thickness: 0.3-0.8mm color painted sheets

Machine should be compatible for Aluminium , PPGI , PPGL , BlueScope etc.

Coil width 925mm

Control System: PLC Panasonic,

Roller Stations: about 14 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ¢75mm,material is 45# forge steel, Chrome with quenching

Main Motor Power: 7.5kw

Hydraulic Pressure: 12Mpa

Material Of The Stations: Wall plate

Tolerance: +1.5mm

Power supplier:380V, 50HZ,3 phase

Way Of Drive:1.2 inch single chain

Color Of The Machine :blue

The size of the forming machine:7000*1500*1000mm

Machine weight: about 6 tons



 Main Components



5 tons passive de-coiler 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Out table 2 units





Working Flow of Roll Forming Machine

 Uncoiling—Feedingwithguide——Rollforming—Cutting—Products collecting

 Galvanized Steel Roof Panel Roll Forming Machine , Profile Sheet Roofing Machine Customized





Loading pictures








TRANSPORTATION

All goods will be shipped to your country, containers number will be decided with how many machines you choose



Commissioning of the machine

The components of the machine are commissioned one after the other. At the end of the commissioning the machine is ready for production and is handed over.

The commissioning comprises:

- Commissioning by Sussman service technicians

- Training at the machine

- The following services are rendered

- Run up of the machine components

- Testing of all functions of the machine components

- Start of a fully automatic molding process

- Execution of machine acceptance

Delivery extent does not comprise of:

- Raw materials, process materials and consumables

- Raw material for test blocks

- Transport and lifting devices

The operators of the plant should be present during the commissioning in order to become familiar with the new machines.
