Product Details:
|
| Material Thickness: | 3-5mm Galvanized Coil | Uncoiler: | 3 Tons Manual |
|---|---|---|---|
| Servo Feeder Power: | 1.5Kw | Rolling Speed: | 5m--20m/min(not Including Punching) |
| Roller Stations: | 15 Stations | Material Of Cutting: | CR12 With Quench Treatment |
| Control System: | PLC With Touch Screen | Roller Material: | GCR15 Quenched 58°-62°,chromed |
| High Light: | corrugated roll forming machine,guard rail roll forming machine |
||

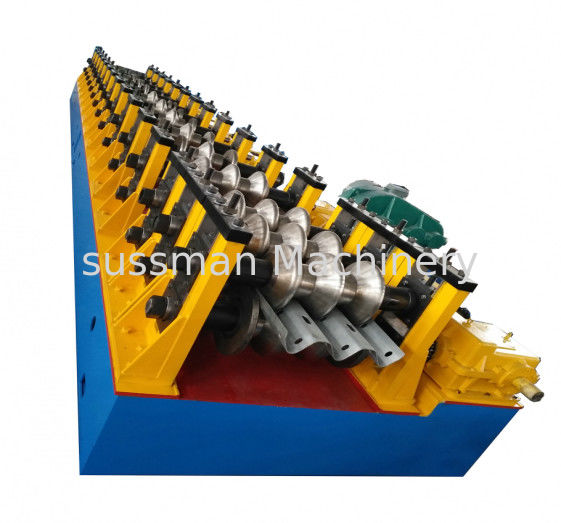

10m/min 1.5-2mm galvanized Guide Rail Roll Forming Servo Feeder Power 1.5Kw
Technical Parameter
|
Material of coil |
Material Thickness |
1.5-2mm galvanized |
|
|
Un Coiler |
3 tons manual |
|
Levelling device |
7 rolls |
NC300 |
|
Servo feeder |
Power |
1.5kw |
|
Punching |
Hydraulic punching |
2 sets of punching dies |
|
Forming system |
Rolling Speed |
10 m/min |
|
|
Roller Stations |
12 stations |
|
|
Roller Material |
45# Steel with quenching 50mm shaft |
|
|
Maim Motor Power |
7.5 kw |
|
|
Hydraulic cutting Power |
4 kw |
|
Cutting |
Material Of Cutting |
CR12 with quench treatment |
|
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
Electrical control system |
Electric Source |
380V, 50HZ,3 phase |
|
|
Control System |
PLC (Panasonic) as list in the note |
|
|
Weight |
About 2.5 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 4500mm* Width 600mm* Height 800mm |
Flow Chart
Uncoiler—Levelling—Servofeeding—Hydraulicpunching—Rollforming—Cutting—Outside table
Machine Components
|
3 ton passive decoiler |
1 set |
|
Levelling device |
1 set |
|
Servo feeding device |
1 set |
|
Hydraulic punching |
2 sets |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Hydraulic cutting |
1 unit |
|
Out tables |
1 unit |
Profile Drawing
