0.27-1mm galvanized steel stud and truck roll forming machine with PLC
Machine list
Machine list |
3 ton passive de-coiler
|
1 set |
Main roll forming machine
|
1 set | |
Punching device
|
1 set | |
Cutting device
|
2 sets | |
PLC Control box
|
1 unit | |
Hydraulic station
|
1 unit | |
Out table
|
2 units | |
Safety cover
|
1 unit |
Parameters:
Items
|
Specifications | |
Material of coil |
Thickness
|
0.27-1mm galvanized steel |
De-coiler |
Weight
|
3 ton manual |
Forming system |
Rolling Speed
|
0-10m/min |
Embossing
|
At sides | |
Roller Stations
|
About 13 stations forming | |
Roller Material
|
Cr40 Steel with quenching | |
Shaft Material |
45# Steel Diameter 60mm shaft
|
|
Motor Power
|
7.5 kw | |
Hydraulic cutting Power
|
4 kw | |
Cutting system |
Material of cutting | CR12 with quench treatment |
Hardness
|
HRC58-62 | |
Tolerance
|
+-1.5mm | |
Cutting blade
|
1 set of cutting blade | |
Electrical control system | Electric Source |
380V, 60HZ,3 phase
|
Control System
|
PLC | |
Weight
|
About 3 tons | |
Way Of Drive
|
1 inch single chain | |
Size of machine
|
Length 5500mm* Width 600mm* Height 800m |

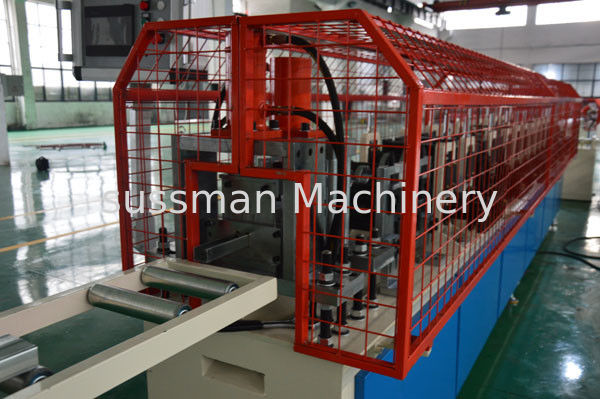

Machine pictures
