Product Details:
Payment & Shipping Terms:
|
Thickness: | 1.5-3.0mm | Speed: | 10m/min |
---|---|---|---|
Material Of The Roller: | Steel Cr15 | Roller: | 20 Stations |
Principal Axis: | Steel No.45 | Electric Motor: | 11kw |
10m / Min Speed CZ Purlin Roll Forming Machine With PLC Industrial Computer
Parameter
Thickness | 1.5-3.0mm |
Speed | 10m/min |
Material of the roller | steel Cr15 |
Roller | 20 stations |
Principal axis | steel No.45 |
Electric motor | 11kw |
Hydrodynamic station cut | 7.5KW |
Drive-by-wire system | PLC industrial computer |
Size | 10.3×1.5×1.2 |
Gross weight | 15 T |
Driving system | gear box drive |
Machine list
Machine list | 3 ton passive Uncoiler | 1 set |
Main roll forming machine | 1 set | |
Control box | 1 unit | |
Hydraulic station | 1 unit | |
Out table 1500mm | 2 unit | |
Hydraulic punching and cutting device | 2 unit | |
Hydraulic cutting device | 1 unit |

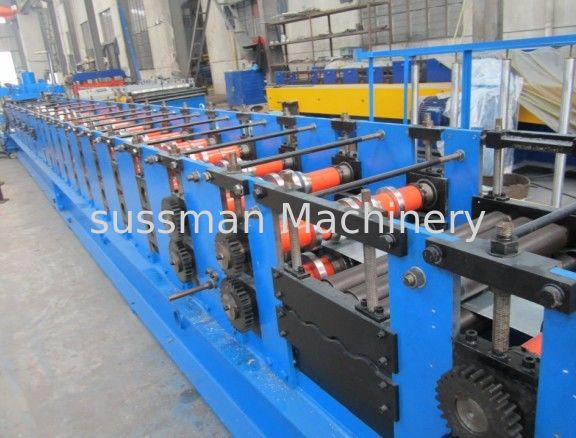

Machine pictures
Samples
