Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers
  • Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers
  • Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers
  • Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers

Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification SGS, ISO9001, CE
Model Number SM-RM
Product Details
Material:
PPGI Or Galvanized Steel
Thickness:
0.4-1.2mm
Forming Speed:
8-12m/min
Forming Stations:
12 Stations
Cutting Way:
Hydraulic Stop Cutting
Transmission:
1 Inc Chain Drive
Hydraulic Power:
4 Kw
Weight:
3T
High Light:

drywall stud roll forming machine

,

metal stud forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
60 days after deposit
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description





Technical parameter



Item Technical data
Steel sheet thickness  0.4-1.2mm (depend on requirement )
Hydraulic power 4kw
Transmission way 1 inch chain
Capacity of Decoiler 3 Ton passive decoiler
Forming Speed 8-12m/min
Roller Groups about 12 stes main roller
Roller Material 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter 60mm
Principal Axis 45# high grade steel with quenching treatment
Main Motor Power 5.5 Kw
Dimension  5500*800*1200mm





Applications



1. Furring channel is used on masonry walls and ceiling assemblies
2. Furring channel is used in conjunction with U-channel, hanger wire, and furring channel clips to form rigid suspended ceiling framework
3. furring is commonly used for purlins in exterior applications
4. Used to level uneven surfaces







Main Components


Machine name Quantity
3 ton manual Decoiler 1 set
Main roll forming machine 1 set
Hydraulic cutting device 1 set
Finished poducts tabels 2 stes
PLC control system 1 set





Furring Channel Working Flow



De-coiler—→feedingwithguide—→roll forming machine—→cutting—→ run out table





Advantage



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 15 Years Experience

5. Durable

6. Reliable

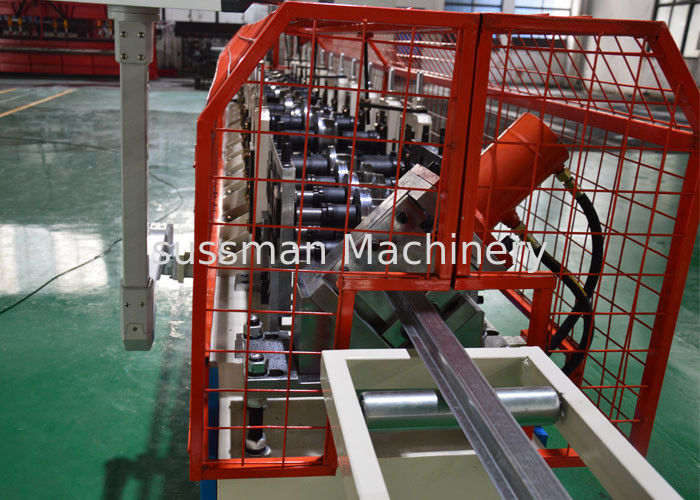

Machine Photo



Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers 0
Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers 1
Gauge 25 Furring Channel Stud And Track Roll Forming Machine 12 Rollers 2
