Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain

China Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain supplier
Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain supplier Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain supplier Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain supplier

Large Image :  Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: SGS, ISO9001, CE
Model Number: SM-RM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 60 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: 0.4-1.2MM PPGI GI Forming Speed: 8-12m/min
Forming Stations: About 12 Stations Cutting Method: Hydraulic Stop Cutting
Transmission: 1 Inch Chain Drive Weight: 3T
Roller Material: Gcr15 Steel With Quenching Shaft Diameter: 60mm

80*35*22mm Omega Furring Channel Cold Roll Forming Machine With Single Chain



Technical parameter



Item

Technical data

Steel sheet thickness

0.4-1.2mm galvanized steel

Hydraulic power

4kw

Transmission way

1 inch chain

Capacity of Decoiler

3 Ton passive

Forming Speed

8-12m/min

Roller Groups

about 12 main rollers

Roller Material

45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

Roller Diameter

60mm

Principal Axis

45# high grade steel with quenching treatment

Main Motor Power

5.5 KW

Dimension

About 5.5*0.8*1.200m

Weight

3 Tons





Applications



1. furring is commonly used for purlins in exterior applications
2. Used to level uneven surfaces
3. Furring channel is used on masonry walls and ceiling assemblies
4. Furring channel is used in conjunction with U-channel, hanger wire, and furring channel clips to form rigid suspended ceiling framework





Main Components


Machine name Quantity
3 tons passive Decoiler 1 set
Main roll forming machine 1 set
Hydraulic stop cutting device 1 set
4 meters finished tabels 1 ste
PLC control box system 1 set
Toll box 1 package





Furring Channel Working Flow



De-coiler—→feedingwithguide—→roll forming —→hydraulic stop cutting—→ out tables

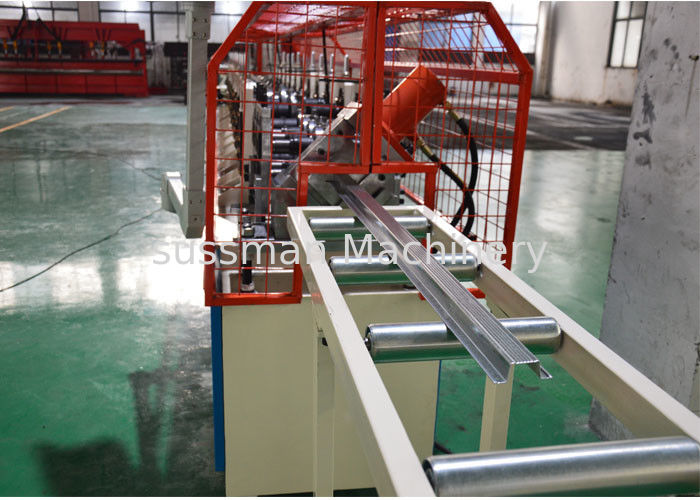

Machine Photo



Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain

Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain

Omega Furring Channel Cold Stud And Track Roll Forming Machine With Single Chain
