CZ Purlin Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-CP |

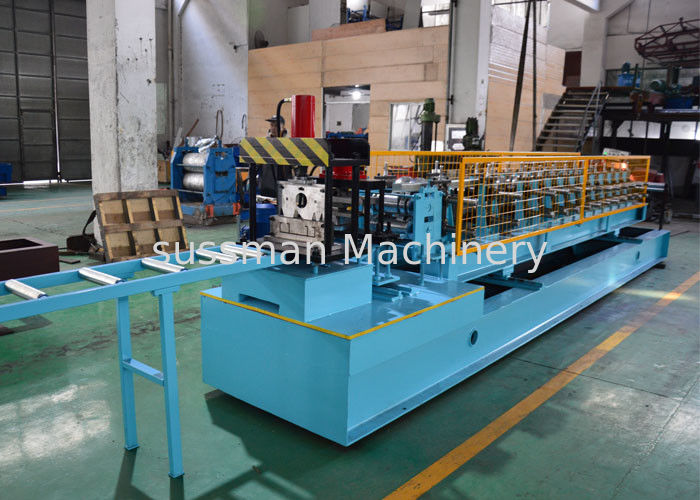

Post Cutting Post Punching C Shape Roll Forming Machine , C Steel Frame Machine
The C purline machine accept the C puline size from 80-100 MM. And can adjust the size by automatically.
This C purline machine is simple and easy operating.
Especally with low prices cost. it is helpful to the boss who is first begin to start this C purline producing business.
|
Material of coil |
Material Thickness |
1.5-3.0mm |
|
|
Width |
from 80mm to 300mm |
|
De-coiler |
Weight |
3 ton |
|
Forming system |
Rolling Speed |
0-12 m/min |
|
Roller Stations |
About 18 roller stations |
|
|
Roller Material |
Gcr15 Steel with quenching 50-55HRC |
|
|
Shaft Material |
45# Steel |
|
|
Main Motor Power |
11KW |
|
|
Hydraulic cutting Power |
7.5KW |
|
|
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Electrical control system |
Electric Source |
380V, 50HZ, 3phase |
|
Control System |
PLC with touch screen |
|
|
Weight |
About 6 tons |
|
|
Way Of Drive |
Chain driven |
C Purlin Technical Parameter
|
Equipment name |
Quantity |
|
3T manual uncoiler |
1 set |
|
Roll forming machine |
1 set |
|
Hydraulic cutting |
1 set |
|
Hydraulic punching |
1 set |
|
Hydraulic station |
1 set |
|
4 meters out tables |
1 set |
|
Control box |
1 unit |
| Spare parts | 1 package |
Each part of C Purlin Machine
1.3T Manual De-coiler
1: Coil inner diameter: 450-520mm
2: Out Diameter: 1200 mm
3: Coil max width: 500mm
4:Max carrying capacity: 3000kg
2. Punching and cutting device
1:Cutting power by hydraulic,7.5KW
2:Hydraulic working pressure: 20Mpa
3:Cutting after forming: Cut the sheet after
roll forming to required length
4:Material of blade:Cr12Mov with heat
treatment 58-60°
5:Length measuring: Automatic encoder
length measuring, brand: Omron
6:Tolerance of length: 3000mm+/- 1.5mm
4.Control Box
(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2) Length & quantity measurement automatically.
(3) Length & quantity controlled by PLC.
(4) Length inaccuracy can be amended easily.
(5). Control panel: Button-type switch and touch screen
(6) The language in the touch screen: English and Chinese
If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
