Fully Automation Z Section Ridge Cap Roll Forming Machine CE ISO Certificated

China Fully Automation Z Section Ridge Cap Roll Forming Machine CE ISO Certificated supplier
Fully Automation Z Section Ridge Cap Roll Forming Machine CE ISO Certificated supplier Fully Automation Z Section Ridge Cap Roll Forming Machine CE ISO Certificated supplier Fully Automation Z Section Ridge Cap Roll Forming Machine CE ISO Certificated supplier

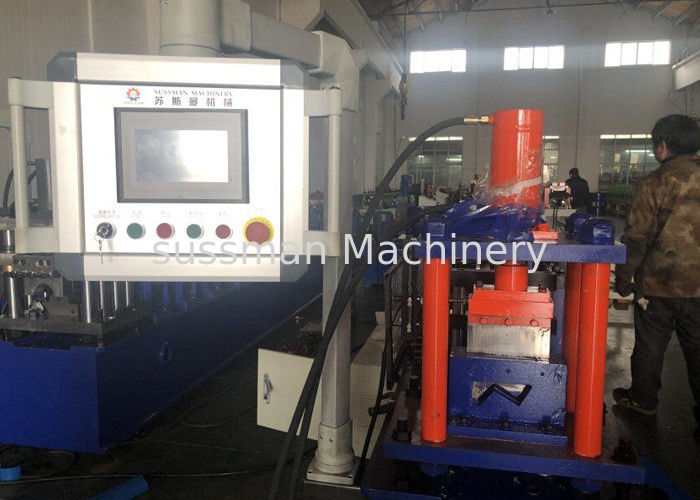

Large Image :  Fully Automation Z Section Ridge Cap Roll Forming Machine CE ISO Certificated

Product Details:

Place of Origin: China
Brand Name: SUSSMAN
Certification: SGS.CE.ISO
Model Number: SM-RH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Steel wire and plastic film
Delivery Time: 60 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Metal Roof Ridge Cap Machine Material: GI,PPGI
Material Thickness: 0.3-0.7mm Rolling Speed: 5-10m/min
Tolerance: +-1.5mm Material Of Cutting: CR12Mov With Quench Treatment
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas



Fully automation ridge cap roll forming equipment/ roof roll forming machine





 Technical Parameter



Item NO



Description



Offered specification

1

Product Line speed

5-10m/min(not include cutting )

2

Suitable material  thickness

0.3-0.6mm

3

Raw material

Color coated steel coil

4

Material width

300mm-500mm

5

Decoiler

3 Ton passive decoiler

7

Roller stations

16 stations

8

Roller material

Bearing steel, quenching treatment

9

Shaft diameter

Φ75mm ,material is 45# forge steel

10

Transmission

By chain one inch 20A single chain

11

Material of chain

45# forged steel with frequency quenching, 12A

12

Cutting system

Hydraulic cutting blade cr12mov with quench HRC58-62°

13

Main motor power

7.5kw

14

Motor power of hydraulic station

4kw

15

Hydraulic station pressure

12Mpa

16

Tolerance

6m+-1.5mm

17

Machine Frame

Beam Steel





Main Components



     S.N

   Equipment name



   Quantity
      1.

    3T passive un-coiler



    1 set
      2.

    Feeding and leveling device

    1 set
      5.     Main roll forming machine      1 set
      6.

    Hydraulic station



    1 set
      7.

    Control system (including control box)



    1 set
      8.

    Out tables



    2 sets
      9.

    Spare parts



    1 package


































Working Flow of Roll Forming Machine



Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables





Advantage



For more information,welcome to visit our website: www.rollformingmachine.info

1. Strong bull style ridge cap roll forming machine, trapezoidal roofing sheet roll forming machine, corrugated sheet roll forming machine, very popular in Indonesia, Thailand, Philippines, Vietnam, Myanmar.
2. The machine can use color steel plate, galvinazed steel plate, G550 full hard galvanizes steel coil
3. Ridge caping machine can produce as customer's request
4. You can see the structure frame cast iron, to make sure the structure more stronger, and can give more precise for the shafts.





Profile of product




 Photo Gallery

Fully Automation Z Section Ridge Cap Roll Forming Machine CE ISO Certificated
