Floor Deck Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-DF |

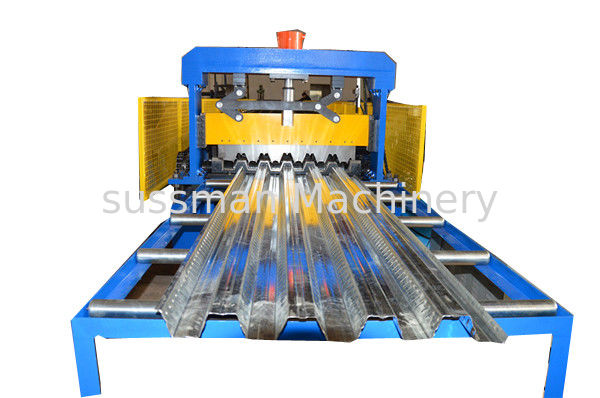

Galvanized Metal Deck Floor Roll Forming Equipment PLC Control
Technical Data
| Item NO | | UnitType | RF-DF |
| 1 | Steel Thickness | mm | 0.8-1.5mm |
| 2 | Forming Speed | m/min | 0-10m/min |
| 3 | Roller stands | stand | 28-30 |
| 4 | Roller Material | Gcr15 chromed | |
| 5 | Shaft diameter | Ф90 | |
| 6 | Main Motor Power | kw | 11*2kw |
| 7 | Hydraulic cutting Power | kw | 5.5 |
| 8 | Hydraulic pressure | Mpa | 12 |
| 9 | Power Supply | 220V, 60HZ,3 phase | |
| 10 | Tolerance | mm | 1.5 |
| 11 | Material of cutting | Cr12mov | |
| 12 | Control system | PLC with touch screen | |
| 13 | DRIVE system | Chain | 1.6 inches |
Technological process
Uncoiling—Feeding&Leveling ---Roll forming—Cutting—Products collecting
Machine Components
| No | Name | Type | Quantity |
| 1 | 15 ton hydraulic de-coiler with coil car | YX63.5-950 | 1 set |
| 2 | Main roll forming machine with embossing | YX63.5-950 | 1 set |
| 3 | Control box | YX63.5-950 | 1 unit |
| 4 | Hydraulic station | YX63.5-950 | 1 unit |
| 5 | Hydraulic stop cutting device | YX63.5-950 | 1 unit |
| 6 | Passive out table | YX63.5-950 | 2 units |
Details of Each Composition
15 ton hydraulic decoiler with coil car
(1) Cutting motion: stop cutting
(2) Material of blade: CR12mov with heat treatment
(3) Length measuring: Automatic length measuring
(4) Tolerance of length: +/- 1.5mm
(1)power supply: 415V, 50Hz, 3Phase
(2)automatic length measurement
(3)automatic quantity measurement
(4)computer used to control length & quantity.Machine will automatically cut to length and stop then required quantity is achieved
(5)length inaccuracy can be amended easily
(6)control panel : button type switch and touch screen
(7)unit of length: millimeter (switched on the control panel)
It adopts welded steel and supported roller to transmit the products.
Size: 2000*1000*1000mm, 2 pieces
