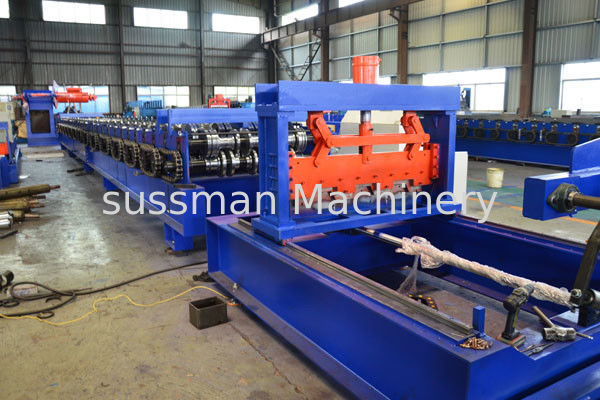

High Speed 15-30m / Min Deck Floor Roll Forming Machine Thickness 0.8 mm -1.2 mm
Metal deck steel produced by this Metal Deck Roll Forming Machine, it has high strength with big wave length. It not only save steel mold plate but also reduce the weight of the storey.
Normally the material thickness is from 0.7-1.2mm.
This machine we also can design it as a Cassette Type. It’s easy to change whole stands with rollers. You don’t have to move the old rollers and adjust them. Just need few minutes, you can save a lot of time and don’t worry about the precision.
Technical Parameter
| S.N | Items | Descriptions |
| 1 | Rolling Speed | 15-30m/min(cutting time is not include) |
| 2 | Steel sheet Thickness | 0.7-1.2mm color painted sheets and galvanized steel |
| 3 | Coil width | as the final drawing |
| 4 | Control System | PLC Delta or Panasonic |
| 5 | Roller Stations | about 28-30 stations |
| 6 | Roller Material | 45# forge steel, coated with chrome |
| 7 | Shaft Material and DIA | ￠90mm,material is 45# forge steel, Chrome with quenching |
| 8 | Main Motor Power | 15kw Anhui wannan Brand |
| 9 | Hydraulic Pressure | 12Mpa |
| 10 | Wall plate thickness | 20mm |
| 11 | Tolerance | +-1.5mm |
| 12 | Power supplier | 380V, 50HZ,3 phase |
| 13 | Way Of Drive | 2 inches single chain |
| 14 | Color Of The Machine | Blue |
| 15 | The size of the forming machine | About 15000*1500*1200mm |
| 16 | Machine weight | about 10 tons |
Machine Component
|
10 tons hydraulic de-coiler with coiler car |
1 set |
|
Main roll forming machine |
1 set |
|
Pre cutting device |
1 set |
|
PLC Control box |
1 set |
|
Hydraulic station |
1 set |
|
4 meters conveyor |
1 set |
|
6 meters auto stacker |
1 set |
| servo following cutting device | 1 set |
| Servo motor | 1 set |
Application
Tiles Making Machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on
Profile Drawing
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
