Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless

China Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless supplier
Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless supplier Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless supplier Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless supplier

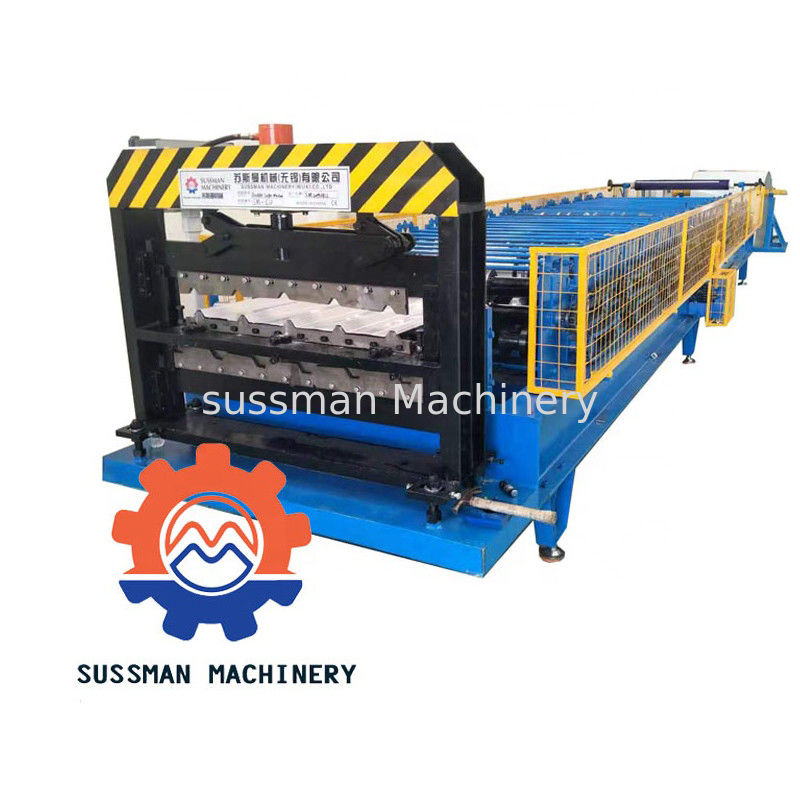

Large Image :  Metal Galvanized Aluminum Roof Panel Roll Forming Machine With Seam Boltless

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-PU

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD15000-USD25000 Per set
Packaging Details: Film nad steel
Delivery Time: 50 days after deposit
Payment Terms: TT, L/C
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Material Thickness: 0.7-1.2mm For Color Coated Steel; 0.5-0.8mm For Aluminum Sheet Forming Speed: 10-12m/min
Roller Stands: 15 Stands Roller Material: 45# Steel, Coated With Chrome, Fire Treated, HRC 58-62
Shaft Diameter And Material: 70mm, 45# Steel, Fire Treated, HRC 58-62 Main Motor Power: 7.5 Kw
Hydraulic cutting Power: 3 Kw Power Supply: According To Client's Inquiry
Tolerance: 1mm Control System: PLC With Touch Screen
Drive Type: 1 Inch Chain Drive



Metal Galvanized Aluminum Beam Standing Roof Sheet Roll Forming Machine With Seam Boltless





Technical Parameter


Item NO



Description

UnitType RF-RP
1 Material Thickness mm 0.7-1.2mm for Color coated steel 0.5-0.8mm for aluminum sheet
2 Forming Speed m/min 0-10
3 Roller stands stands 15
4 Roller Material   45# steel, coated with chrome, fire treated, HRC 58-62
5 Shaft diameter and materail   Ф70, 45# steel, fire treated, HRC 58-62
5 Main Motor Power Kw 7.5
6 Hydraulic cutting Power Kw 3
7 Hydraulic pressure Mpa 12
8 Power Supply   According to client’s requiry
9 Tolerance mm 1.5
10 Material of cutting   Cr12
11 Control system   PLC with touch screen
12 Main machine weight T 6-7 Ton
13 Outer specification m 7*1.2*1.2
14 Transmission Type   1 inch chain drive




Standing Beam Main Components





1 5 ton passive de-coiler 1 set
2 Main roll forming machine with wheels 1 set
3 PLC Control box 1 unit
4 Hydraulic station 1 unit
5 Out table 2 units






Advantage for Standing Beam

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable







Working Flow

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables

Standing Beam Roof Panel Roll Forming Machine 4 - 8m / min 16 Stations







Profiles of Standing Beam



Standing Beam Roof Panel Roll Forming Machine 4 - 8m / min 16 Stations
