Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | SGS, ISO9001, CE |
| Model Number | SM-PM |
Galvanized Metal Steel Post Roll Forming Machine for Electrical Control Box
Main features of Roll Forming Machine
1. Accuracy Profile
2. Stable
3. Easy operation, low maintenance cost
4. Beautiful appearance
Technical parameter
|
Item |
Technical data |
|
Steel sheet thickness |
galvanized steel 0.9-1.2mm |
|
Hydraulic power |
7.5kw |
|
Transmission way |
chain |
|
Capacity of Decoiler |
3 tons passive |
|
Forming Speed |
8-12m/min |
|
Roller Groups |
about 13 roller |
|
Roller Material |
Gcr15 high grade steel with finish machining treatment, quenched HRC58-62 |
|
Roller Diameter |
60mm |
|
Principal Axis |
45# high grade steel with quenching treatment |
|
Main Motor Power |
7.5 KW |
|
Dimension |
About 5.5*0.8*1.0m |
| Weight | About 6T |
Main Components
| Machine name | Quantity |
| 3T manual uncoiler | 1 set |
| Pre-punching | 1 set |
| Main roll forming | 1 set |
| Hydraulic cutting system | 1 set |
| 4 meters out tables | 1 ste |
| PLC control box system | 1 set |
| Tool box | 1 package |
| Safety cover | 1 set |
Working flow
Manual deocoiler--servo feeder--punching-roll forming-cutting-tables
Profile Drawing

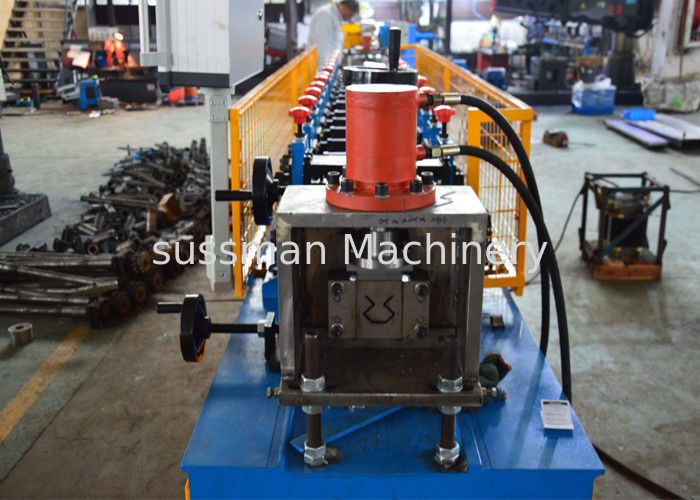

Machine Photo
Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
