| Place of Origin | China |
| Brand Name | SUSSMAN |
| Model Number | SM-SSP |
1.5mm-3mm Omega Steel Silo post roll forming machine
Technical Parameter
|
Item NO. |
Description |
Offered Specification |
|
1.0 |
Roll forming machine |
|
|
1.1 |
Rolling speed |
up to 8m/min(not include cutting time) |
|
1.2 |
Rolling thickness |
3mm |
|
1.3 |
Raw material |
Galvanized steel sheet or black steel |
|
1.4 |
dimension |
12000×1000×1200(mm) |
|
1.5 |
Effective width |
200mm |
|
1.6 |
Roller stations |
15 stations |
|
1.7 |
Roller material |
Gcr15 steel, coated with chrome, Quenching |
|
1.8 |
Shaft diameter |
Φ80mm ,material is 45# forge steel |
|
1.9 |
Transmission |
Gearbox |
|
1.10 |
Material of chain |
45# forged steel with frequency quenching, 12A |
|
1.11 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
|
1.12 |
Cutting Tolerance |
6m+-1.5mm |
Main Components
|
S.N |
Equipment Name |
Quantity |
|
1 |
3T hydraulic De-coiler |
1 set |
|
2 |
Leveling device 200mm |
1 set |
|
3 |
Servo feeding device 200mm |
1 unit |
|
4 |
Hydraulic punching |
1 unit |
|
5 |
Main roll forming machine |
1 set |
|
6 |
Cutting holder |
1 set |
|
7 |
Hydraulic station |
1 set |
|
8 |
Control system ( including control box) |
1 set |
|
9 |
Out tables |
2 units |
|
10 |
Spare parts |
1 package |
|
16 |
Cutting dies |
1 set |
|
17 |
Punching die set |
2 sets |
Working Flow of Roll Forming Machine
Decoiler----feedingwithguide------Punching------Rollforming----Punching&Cutting----Products collecting
Profile of product
Punching Layout
Main Machine pictures

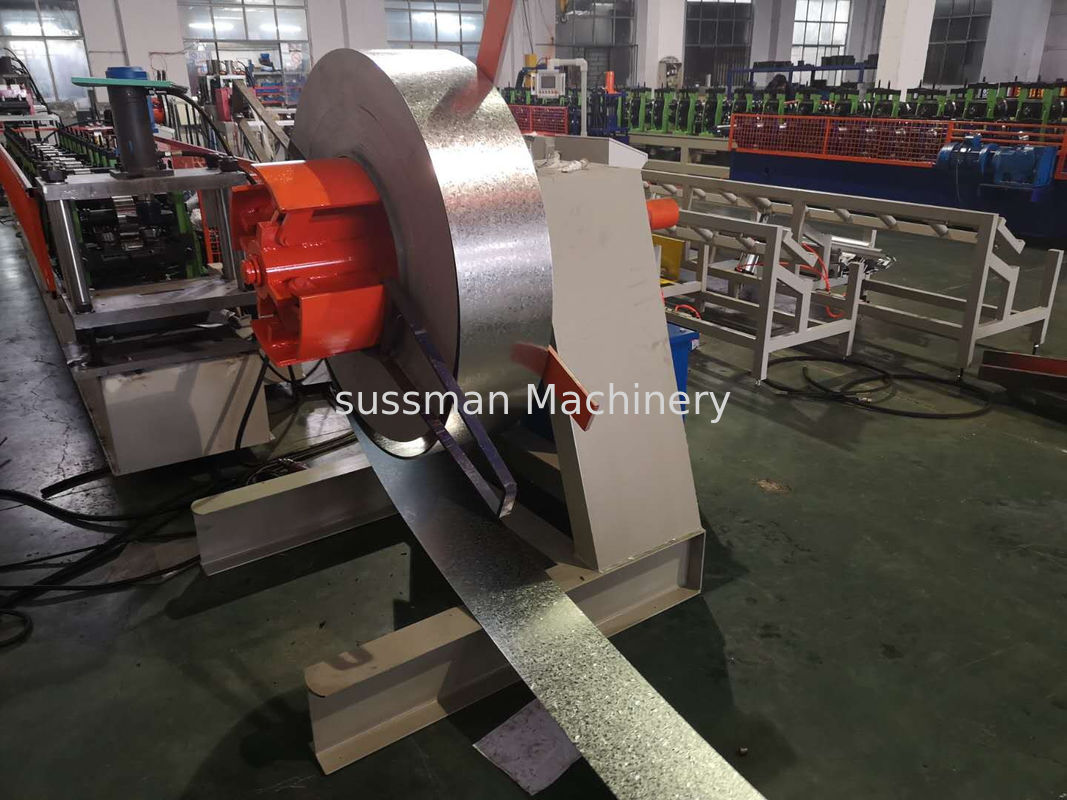

Decoiler
Roll forming machine
After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
Company Profile
Sussman Machinery manufacturing Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
