Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine
  • Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine
  • Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine
  • Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine
  • Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine
  • Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine
  • Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine
  • Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine

Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman Machinery
Model Number SS-TW
Product Details
Certification:
ISO
Roll Material:
CR12mov
The Thickness Of Steel Strip:
0.3-0.8m
Milling Speed:
0-10m/min
Mechanical Equipment Site:
30m*2m (length*width)
Equipment Motor:
30KW
Decoiler:
5 Ton Hydraulic
Shafts:
75mm
Transmission:
Chain Drive
Material:
Galvanized Coils
Condiction:
New
High Light:

10m/min ibr roll forming machine

,

30KW Ibr Roll Forming Machine

,

galvanized coils ibr making machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD55000-75000
Packaging Details
Plastic film and wooden box
Delivery Time
75 days
Payment Terms
Western Union, D/A, L/C, D/P, T/T
Supply Ability
10 SETS PER MONTH
Product Description

10 ton hydraulic decoiler with coil car



Coil inner Diameter: ¢460-520mm

Max out diameter of the coil: ¢1500mm

Max Coil Width: 1250mm

Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine 0

Coil car

Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine 1

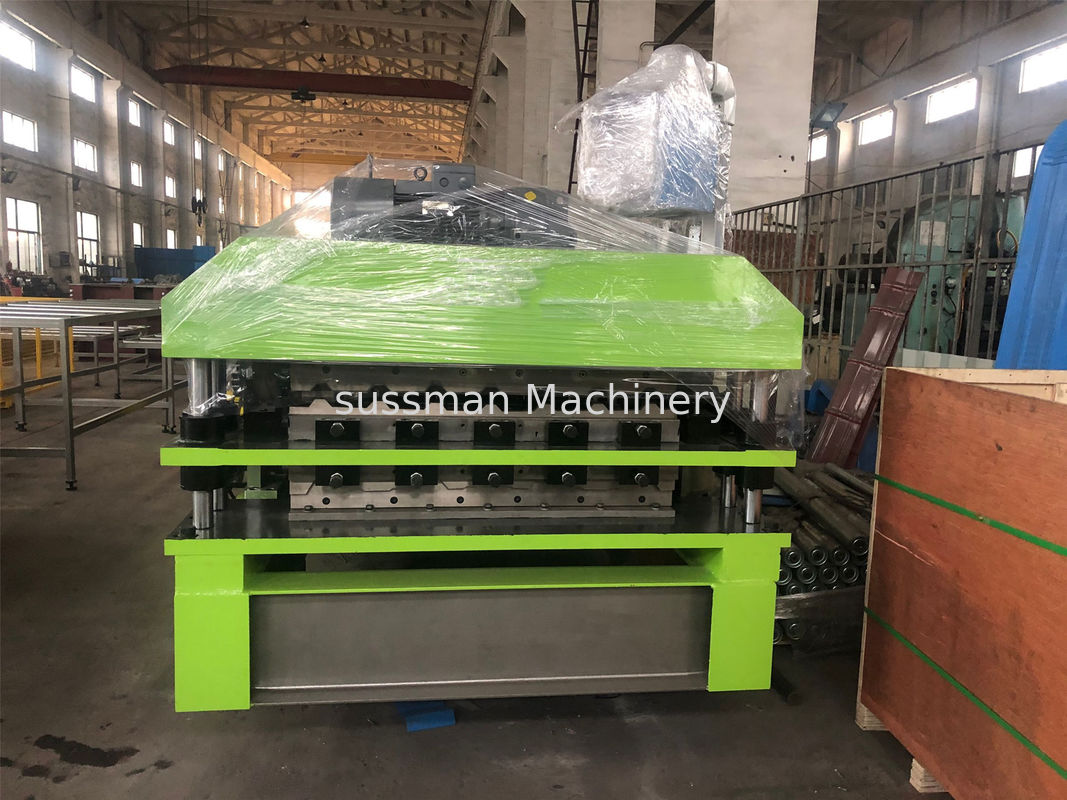

Main roll forming machine



Number Items UnitType RF-DL
1 Steel Thickness mm 0.4-0.8mm, coil width 1220 and 1000mm
2 Forming Speed m/min 8-12
3 Roller stands stand 20 stands bottom layer; 18 stands top layer
4 Roller Material mm 45# steel, coated with chrome quenching
  Shaft material and diameter mm Ф76 45# steel, coated with chrome
5 Main Motor Power Kw 7.5
6 Hydraulic cutting Power Kw 4
7 Hydraulic pressure Mpa 12
8 Power Supply   220V, 60HZ,3 phase
9 Tolerance mm 1.5
10 Material of cutting   Cr12mov HRC60-62
11 Control system   PLC with touch screen
12 Machine net weight T 8

Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine 2



Crimping machine





1. forming speed:0—10m/min

2. material thickness :0.4—0.8 mm/ galvanized steel,pre-painted steel coil

3. curving mould materials:40Cr

4. heat treatment hardness,HB220-280

5. Nitridation processment on the surface of the moulds

6 control system:PLC control,Panasonic made in Japan

7. way of feeding:supporting rollers to feed

8. motor power:2.2kw.

9. hydraulic motor:5.5KW

10 . way of control:Yaskawa made in Japan

11. max curving degree:1200

12. vertical and horizontal type or horizontal type as option





  Name Specification
1 Material thickness 0.3-0.8mm
2 Hydraulic motor 5.5kw
3 Max curving degree 120degree
4 Type of curve machine vertical and horizontal type
5 Curving mould materials 40Cr
6 Tolerance +/-1-2 degree



Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine 3

12 meters Auto stacker



Technique process

air cylinder ejector——Carry panel start——Panel falling—Out put

Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine 4

  1. conveyer belt speed:36m/min
  2. tanker chain speed:18m/min
  3. Max auto height speed:300mm
  4. movable push plate speed:10m/min
  5. Out able Length:12m(the length can be adjustable according to the customer requirement, the max length is 12m
  6. Outer size 13331×4055×1485(mm)
