Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine
  • Metal 3-4mm Strut Guardrail Roll Forming Machine

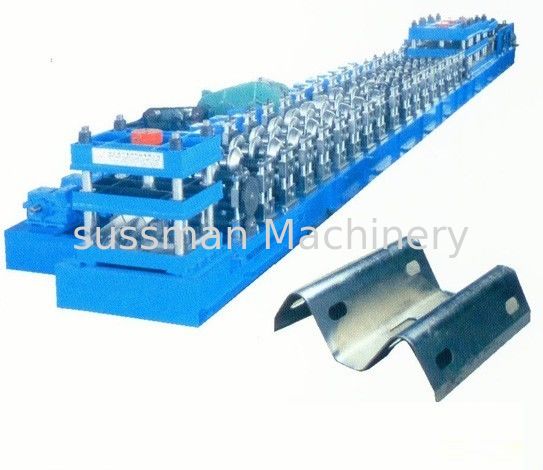

Metal 3-4mm Strut Guardrail Roll Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Material Thickness:
3-4mm Galvanized Coils
Forming Speed:
12-15m/min
Roller Stations:
About 15 Stations
Shaft Material:
45# Steel
Shaft Diameter:
75mm
Hydraulic Pressure:
12Mpa
Cutting Blade Material:
Cr12mov
Tolerance:
+/-1mm
Material Of Main Shaft:
45# High Quality Steel
Cutting:
Hydraulic Cutting
High Light:

strut guardrail roll forming machine

,

metal guardrail roll forming machine

,

4mm guardrail roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD39500-USD79500 per set
Packaging Details
Film and steel
Delivery Time
70 days after deposit
Supply Ability
10 sets/month
Product Description

Metal Customize Strut Slotted Furring Channel Purlin Roll Forming Machine With Gear Box Device



Description

As a professional manufacturer,we can make Metal Customize Strut Slotted Furring Channel Purlin Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of Guard raily machine,such as U channel machine, corrugated sheet making machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.



Detail Images

Suitable material
PPGI GI AL
Coil Width
300-500mm as custom
Thickness
3-4mm as custom
Power
380V 50Hz 3Phase as custom
Main motor
30KW Siemens
Hydraulic motor
7.5KW Siemens
Speed
10-12m/min
Forming stations
18rows
Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material
45# steel quenched and tempered
Shaft diameter
90mm
Chain
gear box
Screem HMI
Delta , Touch Screen
PLC
Delta , Siemens
Processing precision
Within 2mm
Size
17.6m×1.5m×1.2m
Weight
8.5T


Profile drawing





Metal 3-4mm Strut Guardrail Roll Forming Machine 0







Machine photo

Metal 3-4mm Strut Guardrail Roll Forming Machine 1

Metal 3-4mm Strut Guardrail Roll Forming Machine 2





Metal 3-4mm Strut Guardrail Roll Forming Machine 3
