| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | SGS, ISO9001, CE |
| Model Number | SM-RM7 |

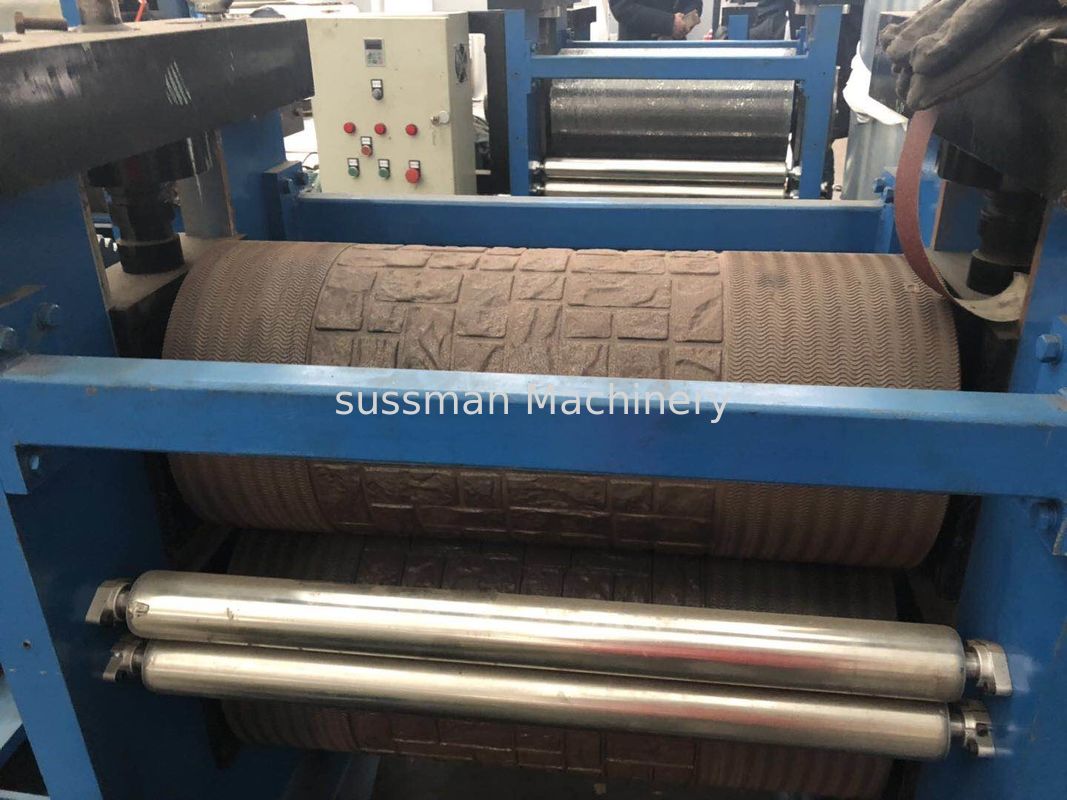

PPGI Coils Metal siding Embossing machine width 1200mm with servo motor
The thickness can be made 0.4-1.2mm, if you want high speed, we can add big motor.
Technical parameter
|
Item |
Technical data |
|
Steel sheet thickness |
0.4-1.2mm galvanized steel,PPGI,GI |
|
Hydraulic power |
7.5kw |
|
Transmission way |
1 inch chain |
|
Capacity of Decoiler |
3 Tons passive |
|
Forming Speed |
8-12m/min |
|
Roller Groups |
about 4 rollers with embossing |
|
Roller Material |
45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62 |
|
Roller Diameter |
60mm |
|
Principal Axis |
45# high grade steel with quenching treatment |
|
Main Motor Power |
5.5 KW |
|
Dimension |
About 3.5*0.8*1.2m |
Different patterns
