Strut Channel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

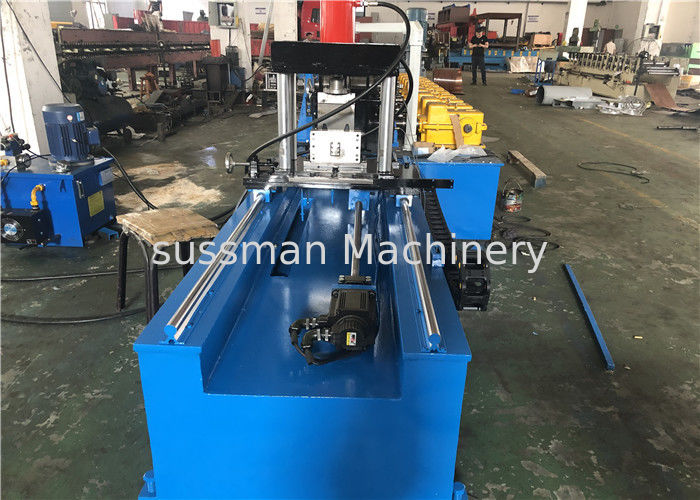

C Shaped Steel Strut Channel Roll Forming Machine With Non-stop Cutting
1. Solar Strut Channel Technical Parameter
| Item | Parameters | |
| Profile | According to your requirements | |
| Model | Type | GI, CR , Steel Coil |
| Thickness(mm) | 1.5-2.5 mm | |
| Yield Strength(Mpa) | 345 | |
| Forming Speed(m/min) | 8-15 | |
| Punching Device | 1 Unit | |
| Roller Stations | About 19 stations; | |
| Roller Material | GCR15 steel, coated with chrome | |
| Roller Driven Type | Gearbox ransmission | |
| Control System | PLC (Panasonic) as list in the note | |
| Operation Type | Touch screen + button | |
| Hydraulic System Pressure | 20 | |
| Hydraulic Motor Power ( KW ) | 4 | |
| Main Motor Power(KW) | 18.5 | |
| Shaft Material and DIA | 75 mm, material is 45 # forge steel | |
| Electric Source | 380V, 50HZ,3 phase; According to customer’s require | |
| Dimension(L*W*H) | Forming Section about 10m*0.8m*1.2m | |
2. Solar Strut Channel Machine Components
| S.N | Equipment name | Quantity |
| 1 | 3T electric un-coiler | 1 set |
| 2 | Feeding guide | 1 set |
| 3 | Main roll forming machine | 1 unit |
| 4 | Main roll forming machine | 1 set |
| 5 | Hydraulic following cutting | 1 set |
| 6 | control box system | 1 set |
| 7 | Out tables | 2 units |
| 8 | Spare parts | 1 package |
| 9 | Safety cover | 1 set |
.
3.Main models
No. | Size | Thickness | | ||
| mm | Inch | Thickness | Gauge | ||
| A | 41x21 | 1-5/8x13/16" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| B | 41x22 | 1-5/8x7/8" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| C | 41x25 | 1-5/8x1" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| D | 41x41 | 1-5/8x1-5/8" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| E | 41x62 | 1-5/8x27/16" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| F | 41x82 | 1-5/8x3-1/4" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
3. Solar Strut Channel Application
1.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.
2.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.
3.Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. Specially made sockets are available to tighten nuts; bolts etc.
