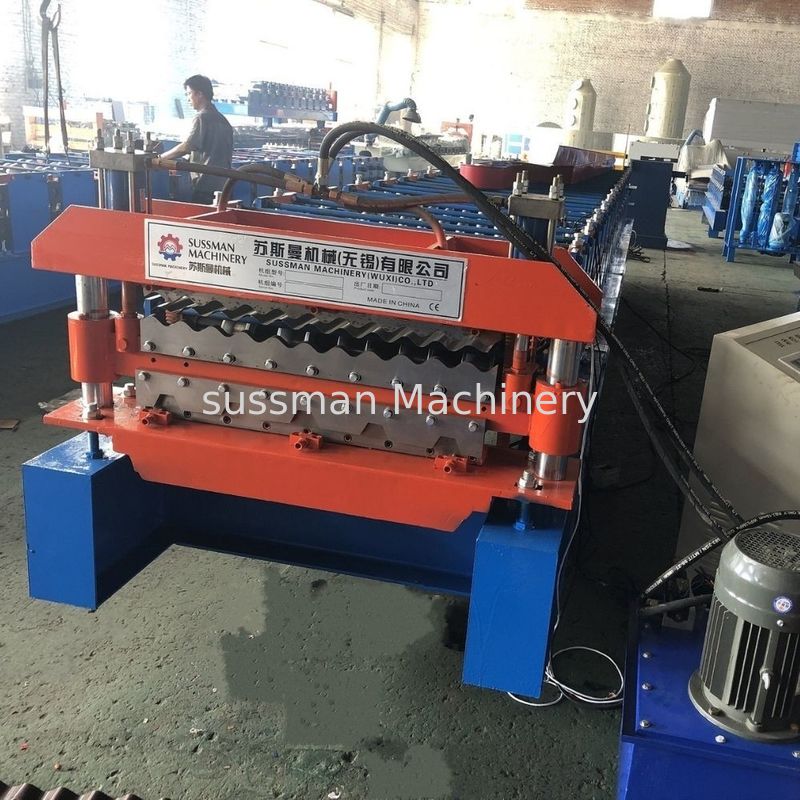

7.5KW 8-12m/min Corrugated Steel Roof Tile Double Double Layer Roof Sheet Roll Forming Machine
1.Main features of roll former china double layer roof panel forming machine
1.This machine is made up of roll forming machine,manual decoiler,cutting machine,PLC computer control and hydraulic system,out put tables.
2.The machine is stable,no noise,no shake.
3.It is one unit, the control box and the hydraulic station for the cutting are all put under the machine frame to save space.
4.The touch screen is hang over, it is not under the floor.
5.When you get the machine,it is no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working.
| No. | Main parameters of Best Seller High Quality Double Layer Glazed Tile Mchine | |
| 1 | Suitable to process | Colored Steel plate, galvanized board, Aluminum plate |
| 2 | Control system | PLC control |
| 3 | Productivity |
Up layer: 0-3m/min, Down layer: 8-10m/min |
| 4 | Width of the raw material | 1000mm |
| 5 | Thickness of the plate | 0.3-1.0mm |
| 6 | Rollers |
Up layer:15rows, Down layer:15 rows |
| 7 | Diameter of the rollers | Φ80mm |
| 8 | Rolling galvanization thickness | 0.05mm |
| 9 | Material of the cutting blade | Cr12 |
| 10 | Dimension | 8.7*1.5*1.5m |
| 11 | Weight | About 5T |
| 12 | Voltage | 380V 50Hz 3phases |
| 13 | Power | 4+4kw |
