Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf
  • Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf
  • Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf
  • Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf
  • Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf
  • Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf
  • Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf

Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf

Place of Origin China
Brand Name SUSSMAN
Certification CE.SGS.ISO
Model Number SS-RS
Product Details
Type:
Storage Shelf Rack Roll Forming Machine
Material:
1.5-3mm, Galvanized Steel Or Blank Steel
Working Speed:
12 Meters / Min
Material Of Roller:
Gcr15, Quench HRC58-62 Plated Chrome
Dimension:
12500mm*800mmm*800mm With Mesh Cover
Control System:
PLC
Weight:
About 20 Tons
Application:
Racking & Shelving
High Light:

Gcr15 Rack Roll Forming Machine

,

Gcr15 upright roll forming machine

,

Hydraulic upright roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD65000-85000 Per Set
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
Shipped in 90 days after payment
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

45# Advanced Steel Galvanized Steel Storage Shelf Rack Upright Racking Shelves Roll Forming Machine





SPECIFICATIONS FOR RACKING UPRIGHT ROLL FORMING MACHINE



Machine specification
Electric power (3 phase, 50 Hz, 380 V)
kW
15
Machine Weight
Tons
9.0–10.0
Machine Dimensions (L x W x H)
m
12.0 x 1.4 x 1.6
Station quantity
stations
20-22

Raw material
Steel Thickness (BMT)
mm

1.5–3.0
Material Strength

G550




Production specification
Forming speed
m/min
14-18 (including stop-cutting & punching process)
Control system

PLC, HMI
Rolling transmission & Cutting and punching system

Hydraulic
Length Tolerance
mm
± 2

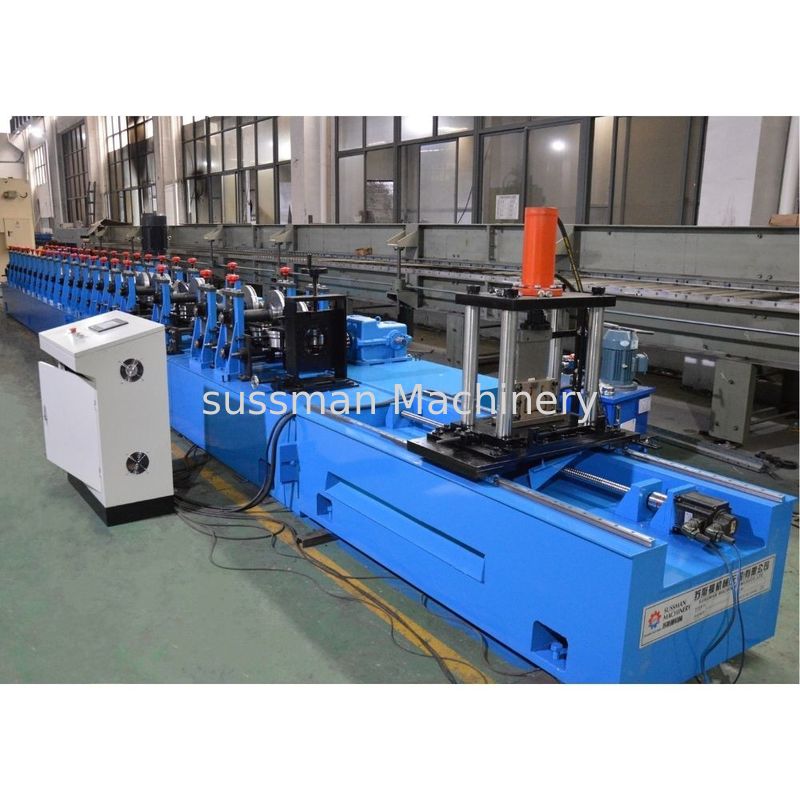

Machine Shows



Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf 0

Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf 1

Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf 2

Application



Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf 3

Gcr15 Upright Rack Roll Forming Machine Hydraulic For Storage Shelf 4

Main Features

1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.
