Door Frame Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

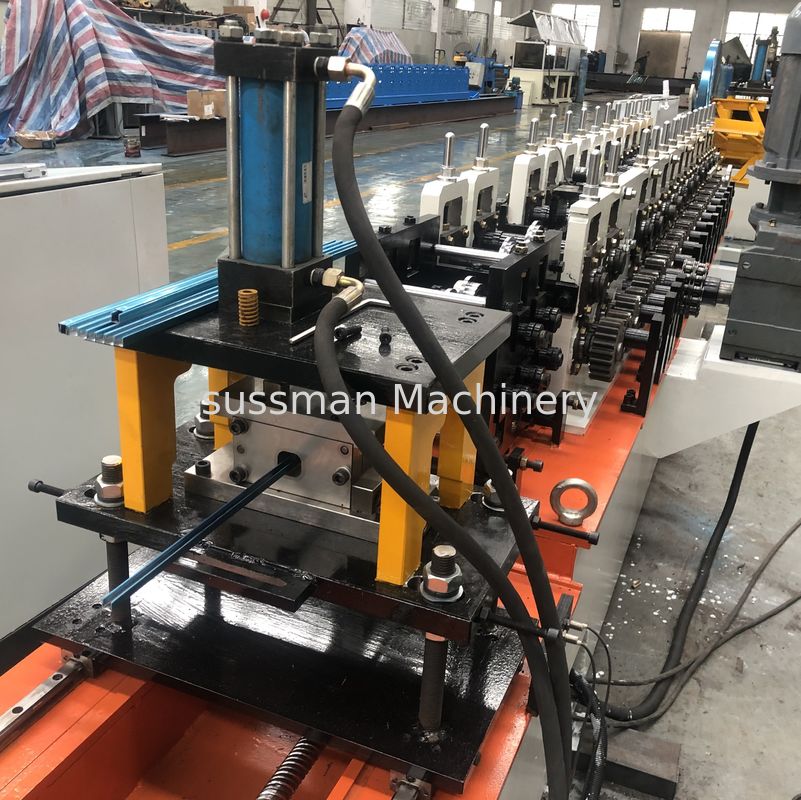

5.5KW Hydraulic Servo Following Cutting U Channel Glass Guide Rail Roll Forming Machine
Technical Parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 0.6mm Stainless Steel |
| Forming system | Rolling Speed | About 30m/min line speed |
| Roller Stations | About 18 stations | |
| Roller Material |
Gcr15 Steel with quenching 60mm shaft
|
|
| Maim Motor Power | 5.5 kw motor | |
| hydraulic station Power | 4 kw | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Servo motor | 1.8kw Delta | |
| Electrical control system | Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s require |
| Control System | PLC control system | |
| Weight | About 3.5 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 5500mm* Width 600mm* Height 1000m |
Flow Chart
Decoiler—Rollforming—HydraulicServo followingCutting—Products collecting
Machine List
| Machine list | 3 ton passive de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Out table | 2 units | |
| Hydraulic Servo following cutting | 1 unit | |
| Safety cover | 1 unit |
Profile Drawing
Spare Parts
Hydraulic station
Out table
Cutting device
