PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine
  • PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine
  • PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine
  • PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine
  • PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine
  • PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine

PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine

Place of Origin China
Brand Name SUSSMAN
Certification SGS,CE ,ISO9001
Model Number SS-FD
Product Details
Name:
Galvanized Steel Floor Deck Roll Forming Machine
Material:
Galvanized Steel
Material Thickness:
0.8-1.2mm
Forming Stations:
28 Stations
Roller Material:
Gcr15, Quench HRC58-62 Plated Chrome
Dirve System:
Chain Drive
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
Up To10-12m/min
Machine Weight:
About 8 Tons
Machine Size:
8mx0.88mx1m
High Light:

Galvanized Roof Deck Roll Forming Machine

,

PLC Roof Deck Roll Forming Machine

,

1.5mm floor deck roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard Packing with film coated and steel wire fixed
Delivery Time
60-90 working days
Payment Terms
L/C, T/T,
Supply Ability
10 sets per month
Product Description

PLC Control 1.5mm Thickness Floor Decking Roof Deck Roll Forming Machine





Floor Deck Making Machine Technical Parameter



Item NO



Description



1

Steel Thickness

0.75-1.2mm

2

Product Line Speed

up to 12

3

Roller station

28 stations

4

Roller Material

45# steel

5

Shaft diameter

90

6

Main Motor Power

18.5kw

7

Hydraulic cutting Power

7.5KW

8

Hydraulic pressure

12KW

9

Power Supply

380V, 50HZ,3 phase

10

Tolerance

1.5mm

11

Material of cutting

Cr12

12

Control system Panasonic

 PLC with touch screen



 Machine List



No

Name

quantity

1

5 ton passive de-coiler

1 set

2

Main roll forming machine

1 set

3

PLC system

1 unit

4

Hydraulic station

1 unit

5

Out tables

2 units





Working Flow of Machine



Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting








 Standard Profile Drawing of product PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine 1

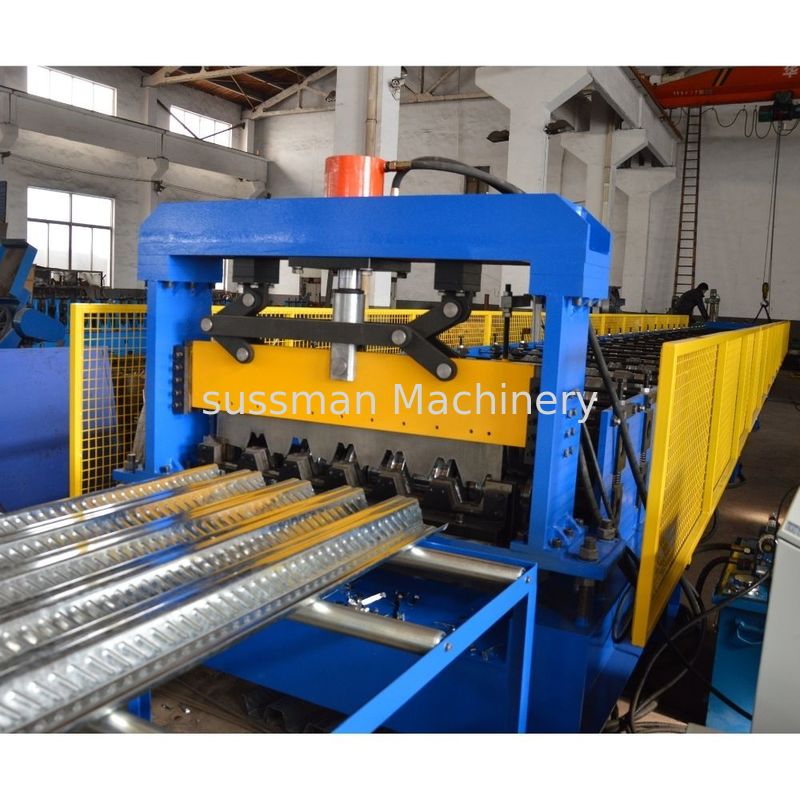

Machine Photo



PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine 2



PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine 3



PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine 4



Application



PLC Control 1.5mm Thickness Floor Roof Deck Roll Forming Machine 5





Loading Pictures






Quality Control

1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.
