Cable Tray Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS,CE,ISO |
| Model Number | SM-SD |
Metal Shutter Rolling Shutter Door Machine / Shutter Slat Roll Forming Machine
Description | offered specification |
Material thickness | 0.7-1.2mm |
Raw material | Galvanized coils yield strength ≤G250MPa |
Forming speed | 8-15m/min |
Decoiler | 3 Ton passive decoiler |
Material of main shaft | 45# high quality steel |
Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |

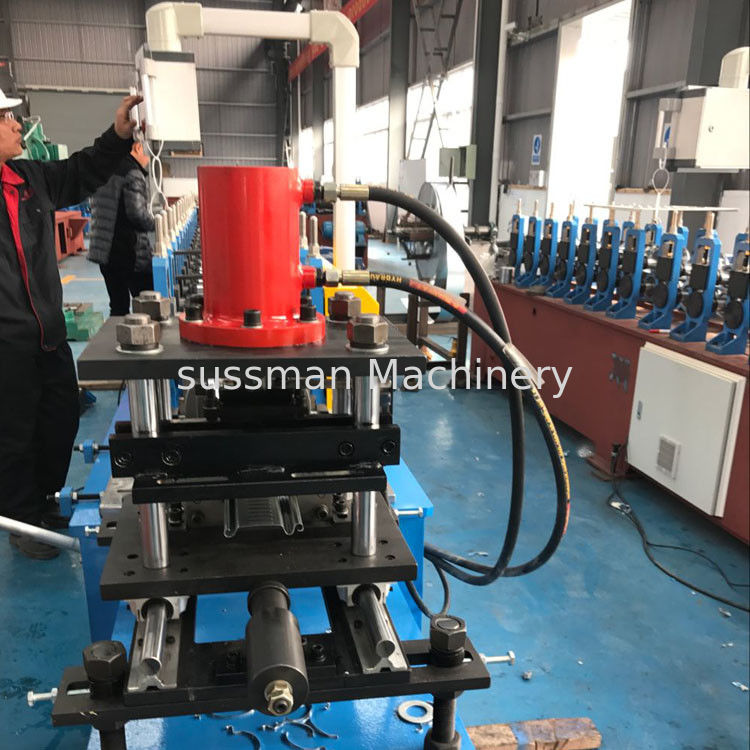

Cutting | hydraulic cutting; quenching HRC58-62 |
Motor power of hydraulic station | 4kw |
Hydraulic station pressurre | 12Mpa |
Tolerance | 6m+-1.5mm |
Machine Frame | H Beam Steel |
| Drive way | Chain Drive |
| Main power | 7.5KW |
| Machine weight | 3 tons |
Working flow
De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table
Machine component
| S.N | Name | Quantity |
| 1 | Leveling device | 1 set |
| 2 | 3T Passive De-coiler | 1 set |
| 3 | Hydraulic station | 1 set |
| 4 | Hydraulic Cutting | 1 set |
| 5 | Control Box | 1 set |
| 6 | Output Table | 2 sets |
Profile drawing we can offer
Our advantage
a.We as a manufacturer are Specialized in all kinds of cold roll forming machine So for the design and produce there are much experience and professional people.
b.Customers’design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c.Panasonic PLC system:Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than eighty countries and regions.We have professional team, complete production system, high quality products, good service.
e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
steel frame truss roll forming machines
pipe roll forming machines and customerized machines
