0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven
  • 0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven
  • 0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven
  • 0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven
  • 0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven

0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE,SGS,ISO
Model Number SM-SD
Product Details
Material Thickness:
0.3-0.6 Mm Stainless Steel
Forming Speed:
0-10 M/min
Main Motor Power:
5.5Kw+1.5KW Servo Motor
Forming Stations:
15 Stations
Hydraulic Power:
4Kw
Drives Method:
Gear
Machine Weight:
3000kgs
Size:
10*10mm And 14*10mm
High Light:

0.6mm U Channel Roll Forming Machine

,

Gear Driven U Channel Forming Machine

,

0.6mm Profile Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
60 days after deposit
Payment Terms
T/T L/C, Western Union, MoneyGram, D/P
Supply Ability
10 sets per months
Product Description

0.6mm Thickness Stainless Steel 10*10mm Size U Channel Profile Roll Forming Machine



1. Technical Parameter




1

Raw Material
Type
Stainless steel
Thickness
0.3-0.6mm

2

Decoiler
Operation
Manual/ Hydraulic for option
Weight Capacity
3T



3



Main Body
Roller Station
15 rollers
Diameter of Shaft
60mm
Material of Rollers
Gcr15
Material of shaft
45# steel with chrome 0.05mm
Transmission
Gear or Chain

4

Cutter
Operate
Automatic Hydraulic / Manual type
Blade material
Cr12MOV


5


Power
Pump motor for cutter
4KW
Main Motor
5.5KW
Voltage
380V 50Hz 3 Phase

6

Control system
Electric Box
PLC control system , Inverter
Language
English / Chinese
7
Speed
0-10M/min





2. Main Components

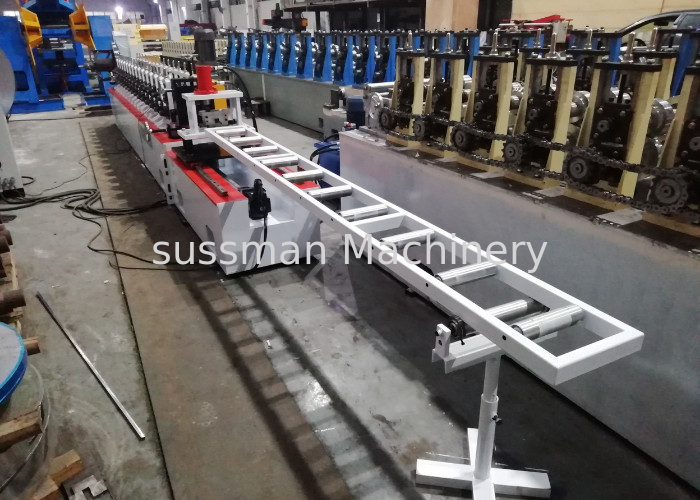

It is composed of passived-decoiler, feeding system, roll forming machine, hydraulic cutting machine, collection table, electrical control system.



0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven 0



3.Profiles of products


0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven 1





4. Detailed Machine component description





3T Manual Uncoiler

1 Inner diameter: 460-520mm

2 Steel coil width: 100-200mm

3 Coil placement in the coil holder: hydraulic hoist

4 Working speed:  adjustable



Main roll forming machine

In order to keep the product shape and precision, adopts welded

sheet structure, motor reducer drive, chain transmission,roller was

chromed which can keep the molding plate surface smooth

0.6mm Thickness Size U Channel Profile Roll Forming Machine Gear Driven 2



Hydraulic Cutting way

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12Mov with heat treatment

(3) Length measuring: Automatically

(4) Tolerance of length: + 1.0mm

(5)  In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.



Control Box

Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.

(1) Power supplier: 380V, 50 Hz, 3 Phase (adjusted with the requestment)

(2) Length & quantity measurement automatically;

(3) Length & quantity controlled by PLC

(4) Length inaccuracy can be amended easily.

(5) Control panel: Button-type switch and touch screen

(6)  The language in the touch screen: English and Chinese

(7) Unit of length: millimeter (switched on the control panel)
