0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting
  • 0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting
  • 0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting
  • 0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting
  • 0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting

0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE,SGS,ISO
Model Number SM-SD
Product Details
Material Thickness:
0.4-0.6 Mm Stainless Steel
Forming Speed:
0-10 M/min
Main Motor Power:
5.5Kw
Forming Stations:
15 Stations
Hydraulic Power:
4Kw
Drives Method:
Gear
Machine Weight:
3 Tons
Size:
14*10mm
High Light:

U Rail Roll Forming Machine

,

0.6mm Rail Roll Forming Machine

,

Stainless Steel rail bending machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
60 days after deposit
Payment Terms
T/T L/C, Western Union, MoneyGram, D/P
Supply Ability
10 sets per months
Product Description

0.4-0.6mm Stainless Steel 14*10mm U Rail Roll Forming Machine With Non Stop Cutting



1. Technical Parameter



Name Description

Production Capacity

0-10m/Min

Voltage

380V 50Hz 3phases

Dimension(L*W*H)

5500*800*1000mm

Weight

3000kg

Warranty

1 Year

Rolling thinckness

0.3-0.6mm

Feeding width

As profile

Control system

PLC(Touch Screen)

Raw Material

Galvanized Sheet

Roller Stations

15 Rollers





2. Main Components


It is composed of passived-decoiler, feeding system, roll forming machine, hydraulic cutting machine, collection table, electrical control system.



S.N Equipment name

Quantity
1 3T manual un-coiler

1 set
2 Feeding and guide device

1 set
3 Main roll forming machine

1 set
4 Hydraulic cutting device

1 set
5 Control system

1 set
6 Out tables

2 sets
7 Spare Parts

1 packages





































3.Profiles of products


0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting 0

0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting 1

0.6mm Stainless Steel U Rail Roll Forming Machine With Non Stop Cutting 2



4. Detailed Machine component description





3T Manual Uncoiler

1 Inner diameter: 460-520mm

2 Steel coil width: 100-200mm

3 Coil placement in the coil holder: hydraulic hoist

4 Working speed:  adjustable

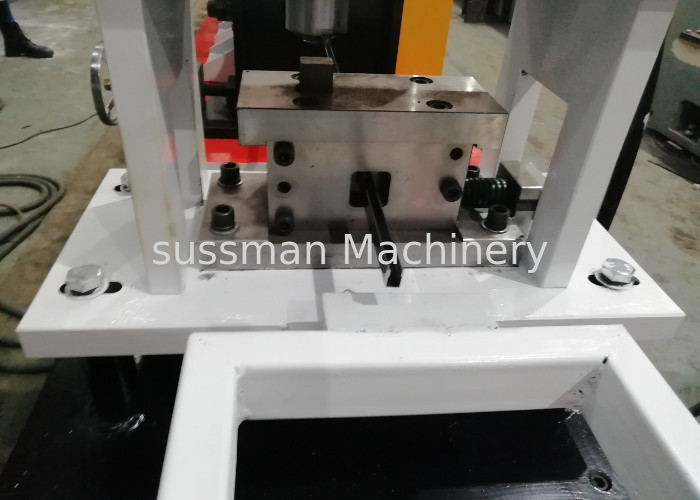

Hydraulic Cutting way

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12Mov with heat treatment

(3) Length measuring: Automatically

(4) Tolerance of length: + 1.0mm

(5)  In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.



Control Box

Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.

(1) Power supplier: 380V, 50 Hz, 3 Phase (adjusted with the requestment)

(2) Length & quantity measurement automatically;

(3) Length & quantity controlled by PLC

(4) Length inaccuracy can be amended easily.

(5) Control panel: Button-type switch and touch screen

(6)  The language in the touch screen: English and Chinese

(7) Unit of length: millimeter (switched on the control panel)
