Shutter Door Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.ISO,CE |
| Model Number | SM-OP |
10-12 M/Minute Speed 40mm 60mm 70mm Shaft Steel Octagon Pipe Roll Forming Machine For Roller Shutter Door
Machine Technical Data
| 1.Suitable material | Galvanized steel sheet |
| 2.Installation Dimension (L*W*H): | About 9.5m*1.0m*1.2m |
| 3.Main motor power | 7.5KW |
| 4.Hydraulic station power | 4KW |
| 5.Thickness of material | 0.4-1.2mm |
| 6.Diameter of principal axis | Φ70 |
| 7.Material expand width | as profile |
| 8.Electric tension | 380V 3phase 50HZ |
| 9.Material of roller | High grade Gcr15# forged steel plated with hard chrome plating,0.02-0.04mm |
| 10.Controlling system | PLC |
| 11.Processing speed | 8-12m/min |
| 12.Processing precision within | +-1.00mm (depend on design) |
| 13.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 14.Kind of drive | 1 inch chain |
| 15.Roller station | 20 Rollers |
| 16. Leak frame load-bearing | 6T |
Production Line Machine List
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T automatic uncoiler |
1 set |
|
2 |
feeding with guide |
1 set |
|
3 |
Main roll forming machine |
1 set |
|
4 |
Output table |
1 set |
|
5 |
Main drive |
1 set |
|
6 |
Fly saw cutting |
1 set |
|
7 |
Controlling system (including cabinet) |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Spare parts |
1 package |
Standard Profile
Octagonal tube is accesory of shutter slat door. Normally we can make size 40mm,60mm,70mm. Also we customized the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal tube. If you want to produce more size in one machine, we recommend cassettes to achieve profile change, they share one machine frame, save more space and costs.

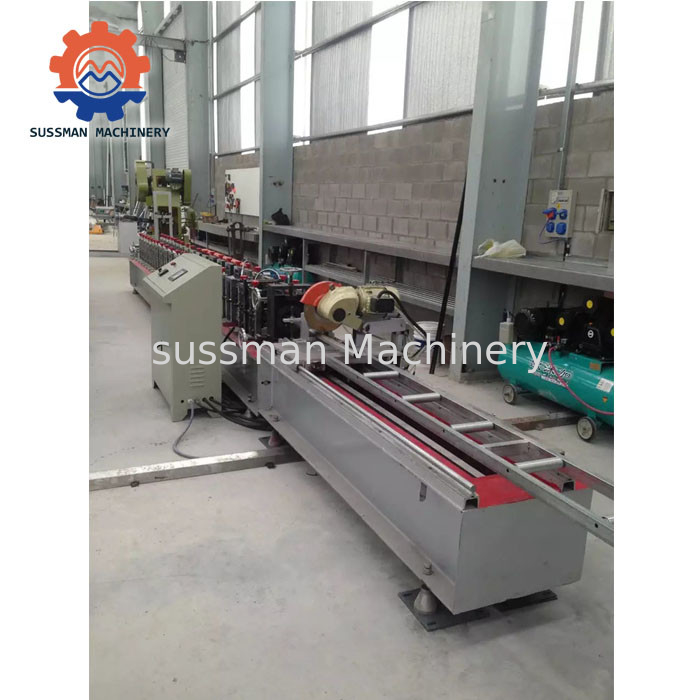

Loading pictures
Application
The octagonal tubes are widely used in a variety of structural parts, tools and mechanical parts. Compared with the round pipe, the octagonal pipe generally has a large moment of inertia and a section modulus, and has a large bending and torsion resistance, which can greatly reduce the structural weight and save steel.
Octagon Pipe Shutter Door Roll forming Machine Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open.
