0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils
  • 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils
  • 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils
  • 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils
  • 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils
  • 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils
  • 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils

0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number SM-RG
Product Details
Forming Thickness:
0.3mm-0.8mm
Forming Speed:
10-12m/min
Forming Stations:
About 18 Stations
Main Motor Power:
7.5Kw
Raw Material:
Galvanized Steel Coils Or PPGI
Dimension:
7500×700×1000(mm)
High Light:

Roof Gutter square downspout machine

,

0.3mm square downspout machine

,

PPGI coils gutter downspout machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

0.3mm-0.8mm Thickness Valley Gutter Roof Downspout Roll Forming Machine



1. Technical Parameter

Item NO



Description



Offered specification

1.0 Roll forming machine
1.1 Rolling speed 10-12m/min
1.2 Rolling thickness 0.3-0.5mm G37
1.3 Raw material Galvanized steel coils or PPGI
1.4 Main motor 7.5kw
1.5 Hydraulic motor 5.5kw
1.6 dimension 7500×700×1000(mm)
1.7 Roller stations About 18 stations
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ70mm,material is 45# forge steel
1.10 Transmission By chain 1 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 6m+-0.5mm
1.14 Frame H type steel
1.15 Voltage 380v, 50hz, 3phases



2. Flow Chart

Uncoiling – Infeed Guiding– Roll forming – Hydraulic cutting – Run-out table
 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils 0



3. Machine Components

The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.




4. Gutter Machine Description


Gutter roll forming machine is suitable for companies who work on rainwater goods system. Machineable thickness of gutter could be 0.4mm-0.6mm or as you request with raw material:Aluminum, Galvanized steel, Painted steel, Galvalume and Cooper etc. We could make machine solution for Quad Gutter, Quarter Round Gutter, C-Square Gutter, Hi-Square Gutter, Lo-Square Gutter, VC Gutter, VF Gutter, VFC Gutter, VFM Gutter, VT Gutter, OG Gutter, OG Big One Gutter, S Gutter, Half Round Gutter, Smoothline Gutter, Round Flo Gutter or according to your profile drawing.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

In rainwater goods system, we are able to manufacture more machines like round downspout pipe roll forming machine, square downspout pipe roll forming machine, separate elbow machine etc.

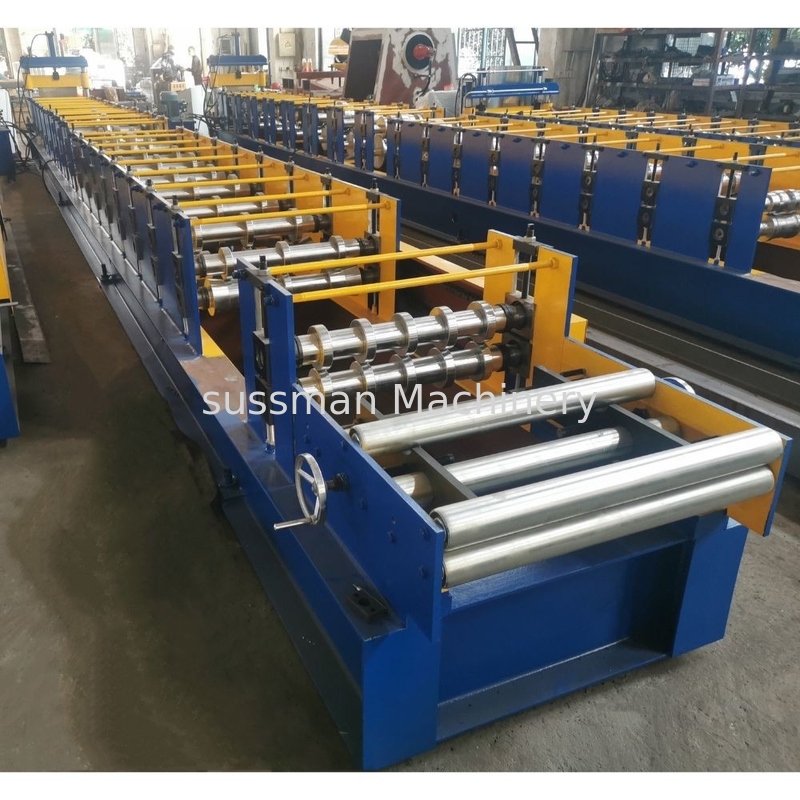

5. Gutter Machine Photo


 0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils 1

0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils 2

Application



A rain gutter also known as a "rain catcher", is a narrow channel, or trough, forming the component of a roof system which collects and diverts rainwater away from the roof edge.

The main purpose of a rain gutter is to protect a building's foundation by channeling water away from its base. The gutter also helps to reduce erosion, prevents leaks in basements and crawlspaces, protects painted or stained surfaces by reducing exposure to water,and provides a means to collect rainwater for later use.



0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils 3

0.3mm Thickness Valley Roof Gutter Square Downspout Machine PPGI Coils 4
