0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width
  • 0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width
  • 0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width
  • 0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width
  • 0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width

0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Steel Thickness:
0.17-0.45mm
Forming Speed:
8-12m/min
Roller Stations:
20 Rollers
Roller Material:
45# Steel
Shaft Diameter:
76mm
Main Shaft Diameter:
7.5Kw
Power Supply:
380V, 50Hz, 3Phase
Tile Type:
Colored Steel,galvanized Steel Sheet
High Light:

1220mm width Double Layer Roll Forming Machine

,

20 Station Double Layer Forming Machine

,

Colored Steel double roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

1220mm Material Width 0.45mm Thickness Double Layer Roll Forming Machine With 20 Station Roller





1. Technical Parameter



Suitable Material Material GI, PPGI, PPGL
Width 1220mm
Thickness 0.17-0.45mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers

Up layer : 18 stations

Down layer : 20 stations

Material of shafts High grade 45# forged steel
Diameter of shafts 76mm
Material of blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed

8-12 m/min

Side plate thickness 20 mm
Chain size 1 inch
Total power 7.5 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 10000mm*1500mm*1600mm
Weight(About) 8 tons
Electronic control system PLC (Delta) Touch Screen



2. Machine List



5 ton passive de-coiler

1 set

Guiding Platform

1 set

Main roll forming machine

1 set

Cutting machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Passive Out table

2 units

Safety cover

1 unit





3. Profile Drawing



0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width 0

0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width 1





4. Main Features



Double Layer Roll Forming Machine can produce two different profile drawings in one machine, it can save more room and of course more economy compared with two different machines.

You can choose two different kind of profile drawings as well as corrugated sheet drawing, but one time only can produce one layer profile .

There is one clutch as one side of the machine, and we just need simply to move one handle wheel to make other layer profile.

  • Variable frequency speed control
  • Multi-purpose for overlap connection
  • Auto power off





5. Machine Photo

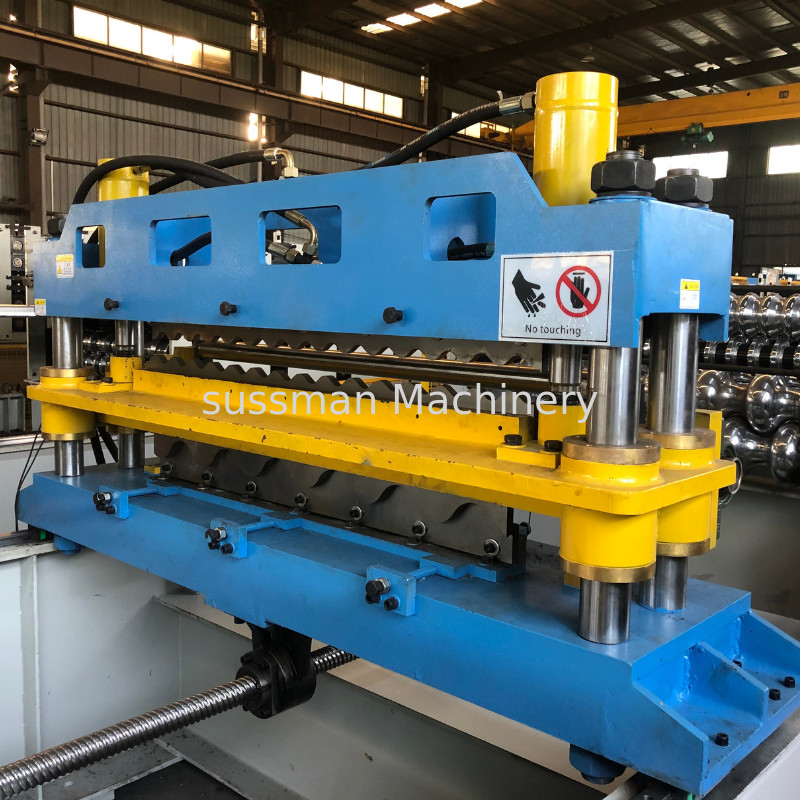

0.45mm 20 Station Double Layer Roll Forming Machine 1220mm Width 2
