Downspout Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | SM-RG |
0.3mm-0.8mm Thickness Half Round Gutter Roll Forming Machine
1. Technical Parameter
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 0-10m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3-0.8mm |
| 1.3 | Raw material | Galvanized steel coils G550 |
| 1.6 | dimension | 5500×700×1000(mm) |
| 1.7 | Effective width | 70mm |
| 1.8 | Roller stations | About 10 stations |
| 1.9 | Roller material | 45#forge steel, coated with chrome |
| 1.10 | Shaft diameter | Φ70mm,material is 45# forge steel |
| 1.11 | Transmission | By chain 1 inch |
| 1.12 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 6m+-0.5mm |
| 1.16 | Frame | H type steel |
| 1.17 | Voltage | 380v, 50hz, 3phases |
2. Flow Chart
Uncoiling – Infeed Guiding– Roll forming – Hydraulic cutting – Run-out table
The whole producing plant has the CE certificate approved
We offer a warranty period of 1year for all of our machines.
Our after-sales services will include factory process designing, equipment Installation coaching, test running the machines, and training of your operation personnel.
3. Machine Components
The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.

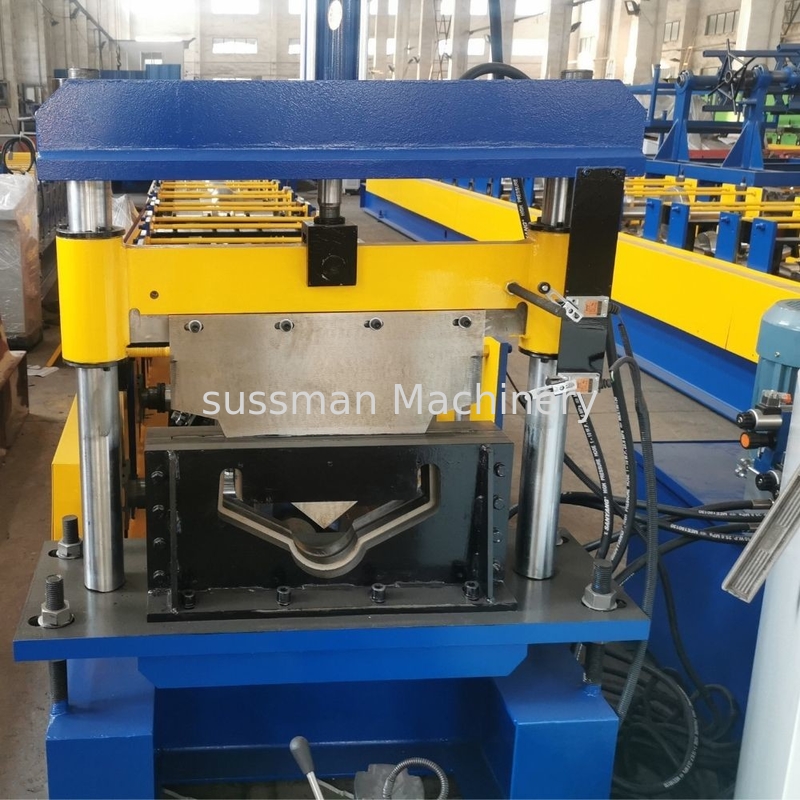

4. Gutter Machine Photo
