| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | SS-DW |
1 In 3 Out Wall Angle Roll Forming Machine With Punching Holes
Wall angle introduction
The Wall Angle Channel Roll Forming Machine can produce different kinds of angle steels, which produces thickness of 0.4-1.2mm steel coils. The number of roll forming stations is about 9 stations, or according to your profile drawing. We can design the machine and flow chart according to your profile drawing and requirements. We also have several feeding systems and hydraulic punching systems which can satisfy your complex punching requirements.
Technical Parameter
Working process
Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting
Machine Components
|
3 ton passive de-coiler |
1 set |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Out table |
2 units |
|
Following cutting |
1 unit |
|
Safety cover |
1 unit |
Profile of product

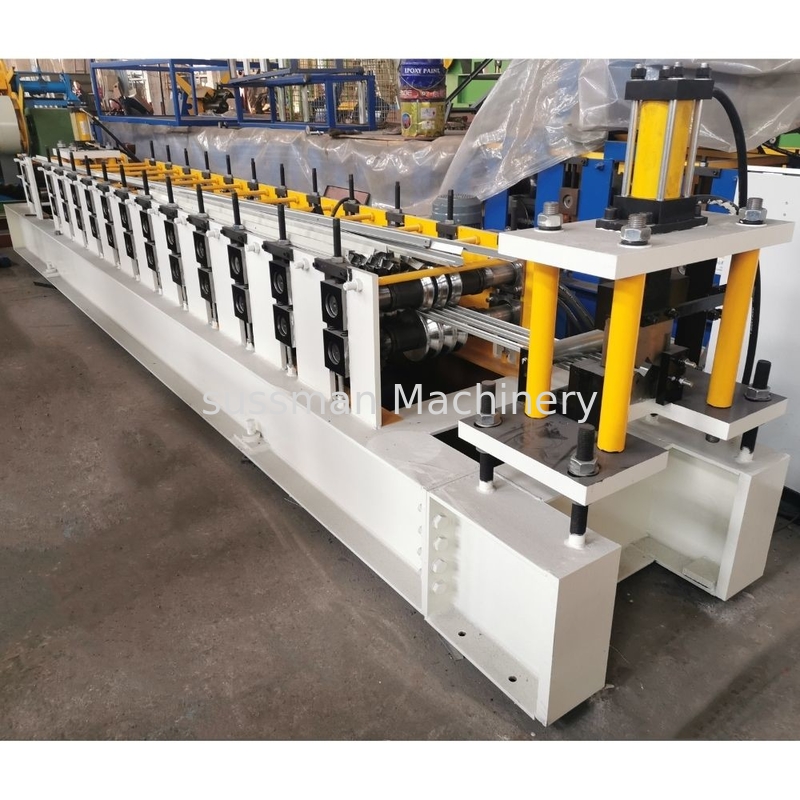

Machine Photo
