Rack Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | CE.SGS.ISO |
| Model Number | SS-RS |

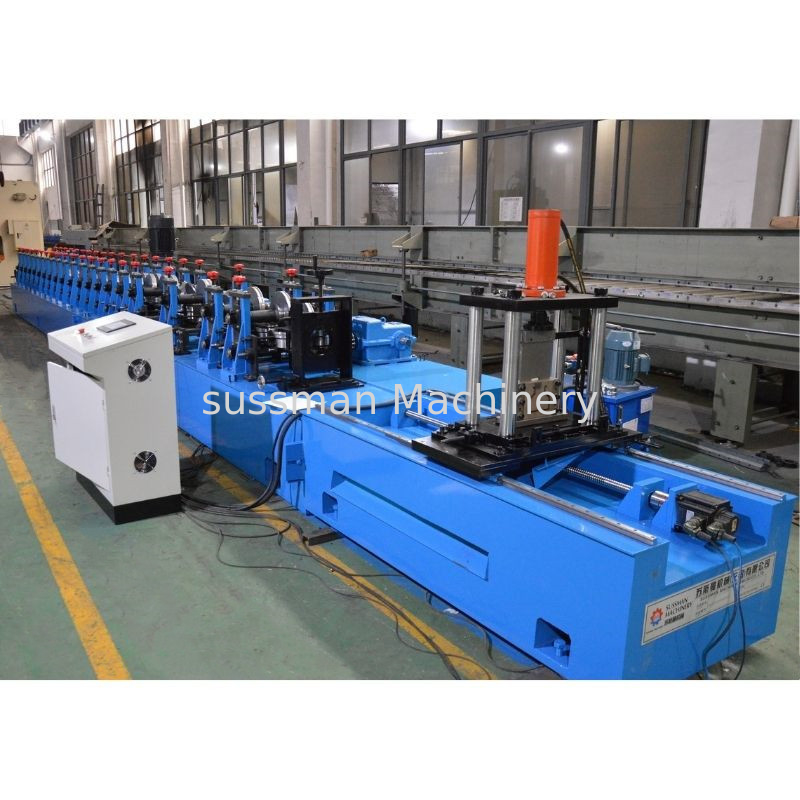

12 Meters/Min Speed Upright Racking Roll Forming Machine With Gear Box Drive
Main Roll forming machine technique data
1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
2. Working Speed: 12 meters / min
3. Forming Steps: 18 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Gear box
7. Main Power with reducer: 15KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
11. The whole machine is controlled by industry computer-PLC.
Machine parts list
| S.N | Equipment name | Quantity |
| 1 | 3T hydraulic un-coiler | 1 set |
| 2 | Leveling device 400mm | 1 set |
| 3 | Servo feeding device 400mm | 1 unit |
| 4 | Press machineJH21-80 | 1 unit |
| 5 | Main roll forming machine 18 stations | 1 set |
| 6 | Cutting holder | 1 set |
| 7 | Hydraulic station | 1 set |
| 8 | Control system ( including control box) | 1 set |
| 9 | Out tables | 2 units |
| 10 | Spare parts | 1 package |
| 11 | Hydraulic Cutting die | 1 set |
| 12 | Punching die set | `1 set |
Machine Layout
Machine Shows
Application
Total machine specification
The outline of the machine: about 25 meters*1meter*1.2 meters
Total weight: about 20 tons
Shipping container 2*40 feet GP containers
