1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable
  • 1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable
  • 1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable
  • 1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable
  • 1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable
  • 1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable
1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable

1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable

Place of Origin China
Brand Name SUSSMAN
Certification CE.SGS.ISO
Model Number SS-RS
Product Details
Type:
Shelf Box Panel Roll Forming Machine
Thickness:
0.7mm-1.2mm
Stations:
About 20 Stations
Motor Power:
7.5KW
High Light:

Automatic Rack Panel Roll Forming Machine

,

1.2mm Shelf Box Roll Forming Machine

,

20 stations Rack Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD65000-85000 Per Set
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
Shipped in 90 days after payment
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

0.7mm-1.2mm Thickness Automatically Width Adjustable Racking Shelf Box Panel Roll Forming Machine

Technical Data:

1. Materials to form: According to the customers’ requirement width 200-610mm, adjustable by PLC automatically, thickness 0.5-1.0mm, length is variable from 0-10000mm

2. Forming steps: About 18 steps

3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150

4. Material of main shaft : 45# high quality steel (diameter＞￠50)

5. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13

6. Cutting: Hydraulic cutting; quenching HRC58-62

7. Electronic control: PLC control

8. Dimension of machine: 10000mmX1000mmX900mm

10. Drive system: Chain drive, 11KW main motor power, working speed: 3-5m/min;

11. Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are be gantry planer processing after welded, work platform is not allowed stress deformation; main machine table-board’s plainness ＜2mm/1000mm

12. Parts: Slide: imported from Japan; bearing: Zhonghang Brand of Harbin

13. Punching: Punching the holes at the press machine before forming the shapes

14. Bending: Bending after the hydraulic cutting


Machine List:
name
quantity (set)
5 ton electrical De-coiler
1 set
Servo feeder
1 set
Hydraulic punching device
1 set
Hydraulic cutting&bending machine
1 set
Main roll forming machine
1 set
Run out table
2 sets
Control box
2 sets
Working Flow:
De-coiler—→Level device —→Servo feeding—→ Hydraulic punching notch—→Punching press —→Main roll forming machine—→Hydraulic cutting—→Bending—→ Run out table

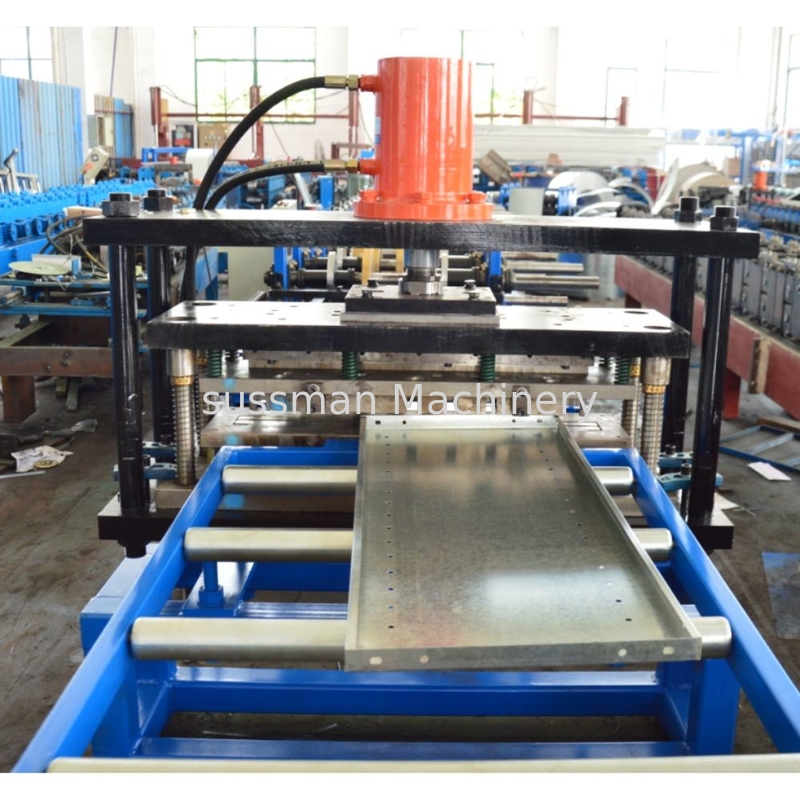

1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 0
1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 1
Profile Drawing:

1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 2
1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 3

Sample pictures:
1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 4
1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 5


Application:



1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 6

1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 7

1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable 8





Main Features

1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.
