| Place of Origin | Wuxi |
| Brand Name | sussman machinery |
| Certification | CE SGS ISO |
| Model Number | SM-SD-048 |
The roll forming machinery technique data includes the suitable plate material of thickness 1.5-2mm, galvanized steel or black steel, the working line speed of 5-6m/minutes, about 26 stations of forming machinery, and the material of roller being GCR15 with quench HRC58-62 plated chrome. The material of shaft is 45# Advanced Steel with a diameter of 76mm and has been thermally refined. The driven system is chain drive with a main power of 11KW WH Chinese Famous, and hydraulic cutting Cr12mov is used for cutting. The material of cutting knife is also Cr12Mov with quench HRC58-62. Furthermore, the whole machine is controlled by an industry computer-PLC, with Delta from Japan for English and Chinese language, Delta for touch screen, Omron from Japan for encoder, and Schneider for the electric parts.
| Parameter | Value |
|---|---|
| Power Supply | 380V, 50Hz, 3Phase |
| Roller Diameter | 70mm |
| Forming Stations | 14 Stations |
| Cutting Length | 3-6m |
| Forming Width | 100mm, 200mm |
| Hydraulic Cutting Power | 5.5KW |
| Forming Motor Power | 7.5KW |
| Forming Speed | 3-5/min |
| Weight | 5T |
| Forming Thickness | 0.5-1.0mm |

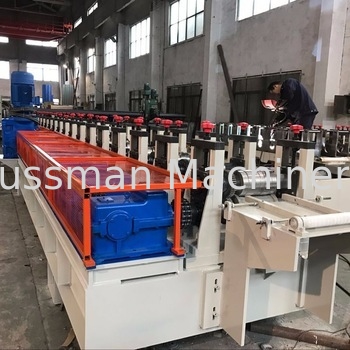

The Rack Forming Device from Sussman Machinery (Model Number: SM-SD-048) is designed for creating racks and frames from 0.5-1.0mm thick galvanized steel and PPGI materials. This roll forming equipment is certified by CE SGS ISO and the minimum order quantity is 1 SET. Manufactured in Wuxi, this apparatus is equipped with a hydraulic cutting power of 5.5KW and a control system of PLC. The roller diameter of this roll forming machine is 70mm. The price is discussed, and the packaging and delivery details include naked packaging with steel, and delivery time is 60 days. The payment terms are TT/LC, and the supply ability is 20 sets.
Sussman Machinery offers customized service for Rack Roll Forming Machine (Model Number: SM-SD-048). This roll forming apparatus is manufactured in Wuxi and certified by CE SGS ISO. The minimum order quantity is 1 SET, and the price is discussed. Packaging of the roll forming machine is naked packaging with steel. Delivery time is 60 days, and payment terms are TT/LC. Supply ability is 20 sets. Cutting length of the rack forming machine is 3-6m, and control system is PLC. Weight is 5T, and the forming speed is 3-5/min. Hydraulic cutting power is 5.5KW.
Please contact us now for more information about this Roll Forming Apparatus and our Customized Service!
Packaging and Shipping for Rack Roll Forming Machine:
The Rack Roll Forming Machine will be wrapped in a protective bubble wrap, and then placed in a secure cardboard box. The box will be taped, labeled, and shipped via an insured carrier.
