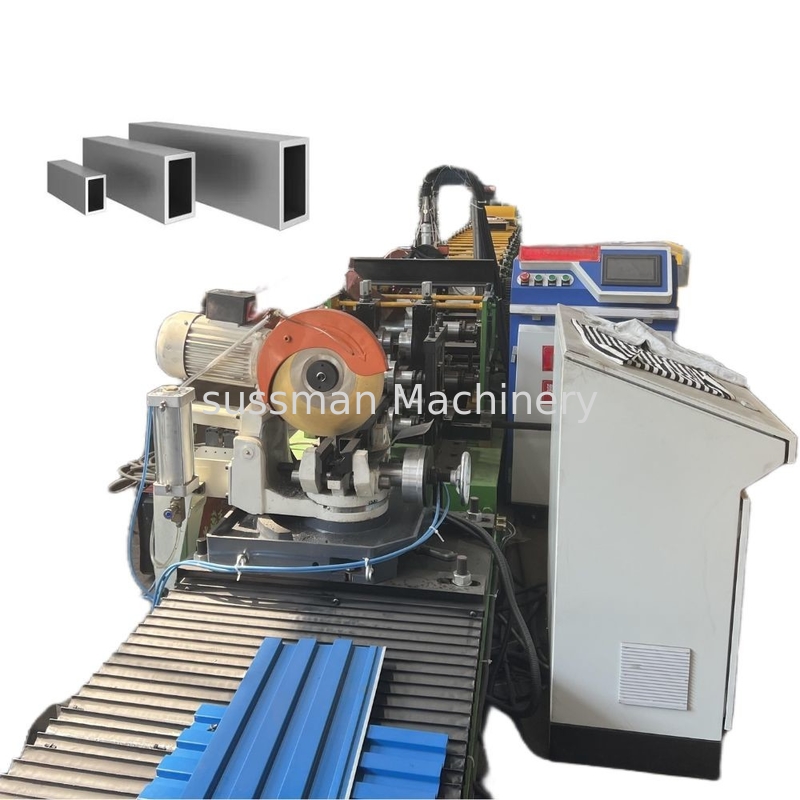

1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding
  • 1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding
  • 1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding
  • 1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding
  • 1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding
  • 1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding
1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding

1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding

Place of Origin China
Brand Name SUSSMAN
Certification SGS,CE.ISO
Model Number SS-BB
Product Details
Type:
Laser Welding Tube Roll Forming Machine
Raw Material:
1.0mm-1.6mm Galvanized Steel Plate
Forming Speed:
8~10 Meters/minute
Roller Material:
GCR12 Bearing Steel
High Light:

1.6mm Tube Roll Forming Machine

,

Rectangle Tube Roll Forming Machine

,

Tube Roll Forming Machine 3KW

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD19999-29999 Per set
Packaging Details
standard packing
Delivery Time
60-90 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

1.0mm-1.6mm Thickness Box Beam/ Square Tube/ Rectangle Tube Roll Forming Machine with 3KW Laser Welding Machine



This machine is made for a customer from Mexico, the sizes are adjustable by changing cassettes or rollers. The laser welding machine is 3 KW, working speed is 0-10 meters/minutes.



The overall production line consists of decoiler, roll forming system ,laser welding device, saw cutting system , electric control system , out tables, etc.





1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
2. Working Speed: about 8-12 meters / min
3. Forming Steps: about 20 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain drive
7. Main Power with reducer: 15KW WH Chinese Famous
8. Cutting: Saw cutting
9. The whole machine is controlled by industry computer-PLC.
10. PLC-Delta, Japan English and Chinese Language
11. Encoder-Omron, Japan
12. Electric parts--Schneider
13. The outline of the machine: about 20 meters*1.0meter*1.2 meters

S.N
Equipment name
Quantity
1
3T hydraulic de-coiler with coil car
1 set
2
Main roll forming machine
1 set
3
Servo Fly saw cutting
1 set
4
Control system ( including control box)
1 set
5
6 meters out table
1 unit
6
Spare parts
1 package
7
Cooling system
1 set
8
Gear box driven
1 set
9
Laser welder and cool device
1 set


Working Flow

Manual de-coiler--leveling machine -- roll forming machine –Cutting device–-Product Stand Tables


working flow.jpg

Finished Products

1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding 1

1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding 2

1.0mm-1.6mm Rectangle Tube Roll Forming Machine Box Beam With 3KW Laser Welding 3

Advantage



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable





Our service



1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
