Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

China Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System supplier
Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System supplier Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System supplier

Large Image :  Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CE
Model Number: SS-RC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 55-65 days after deposit
Payment Terms: T/T L/C
Supply Ability: 10 sets per months
Contact Now
Detailed Product Description
Material Thickness: 0.3-0.8mm Forming Speed: 5-10m/min
Main Motor Power: 5.5Kw Forming Stations: 16 Stations

Hydraulic cutting 0.3 - 0.8mm Thick Ridge Cap Roll Forming Machine PLC Control System





Ridge Cap Technical Parameter



1.   Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )

2.   Hydraulic power: 4Kw

3.   Transmission way: 1.2 inch single chain

4.   Material of blad: Cr12, quenching treatment

5.   Capacity of Decoiler: 3 ton manual decoiler

6.   Forming Speed: 5-10m/min (not include cutting and punching stop time)

7.   Roller Groups: 16 stations

8.   Roller Material: GCr15 grade steel, quenching treatment

9.   Material: galvanized steel or color-coated steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 5.5 Kw



Ridge Cap Main Components



     S.N

   Equipment name



   Quantity
      1.

    3T manual un-coiler



    1 set
      2.

    Feeding and leveling device



    1 set
      5.     Main roll forming machine 16 stations drived by single       chain     1 set
      6.

    Hydraulic station



    1 set
      7.

    Control system (including control box)



    1 set
      8.

    Out tables



    2 sets
      9.

    Spare parts



    1 package


































Advantage for Ridge Cap



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable



Working Flow of Ridge Cap



Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables





Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System



Profiles of Ridge Cap



Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System

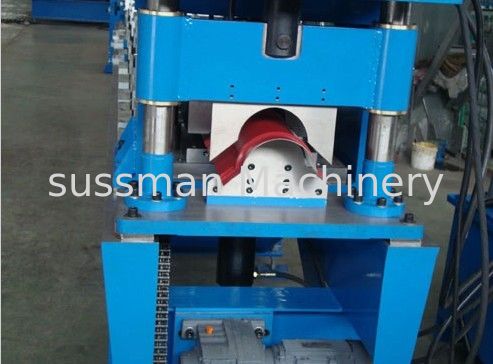

Machine pictures



Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System



Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System



Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System



Samples



Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System  Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System



Application



Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System



Hydraulic Cutting Ridge Capping Roll Forming Equipment with PLC Control System
