Gearbox Transmission Door Frame Roll Forming Machine High Speed

China Gearbox Transmission Door Frame Roll Forming Machine High Speed supplier
Gearbox Transmission Door Frame Roll Forming Machine High Speed supplier Gearbox Transmission Door Frame Roll Forming Machine High Speed supplier

Large Image :  Gearbox Transmission Door Frame Roll Forming Machine High Speed

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Coil Material: 1.5-2mm, Galvanized Steel Or Blank Steel Main Motor Power: 15Kw
Hydraulic Cutting Power: 5Kw Drive Way: Gearbox Drive



 Gearbox Transmission Door Frame Roll Forming Machine High Speed


   Technical Parameter



suitable material galvanized steel or blank steel, thickness 1.5-2mm
forming speed 12-15m/min
forming stations 18 stations
roller material GCr15, HRC58-62
shaft material 45# steel, diameter 76mm
Drive system Gearbox drive
Main motor power 15Kw
Hydraulic cutting power 7.5Kw
Cutting blade material Cr12Mov
PLC Panasonic, Japan



Profile drawing
Gearbox Transmission Door Frame Roll Forming Machine High Speed

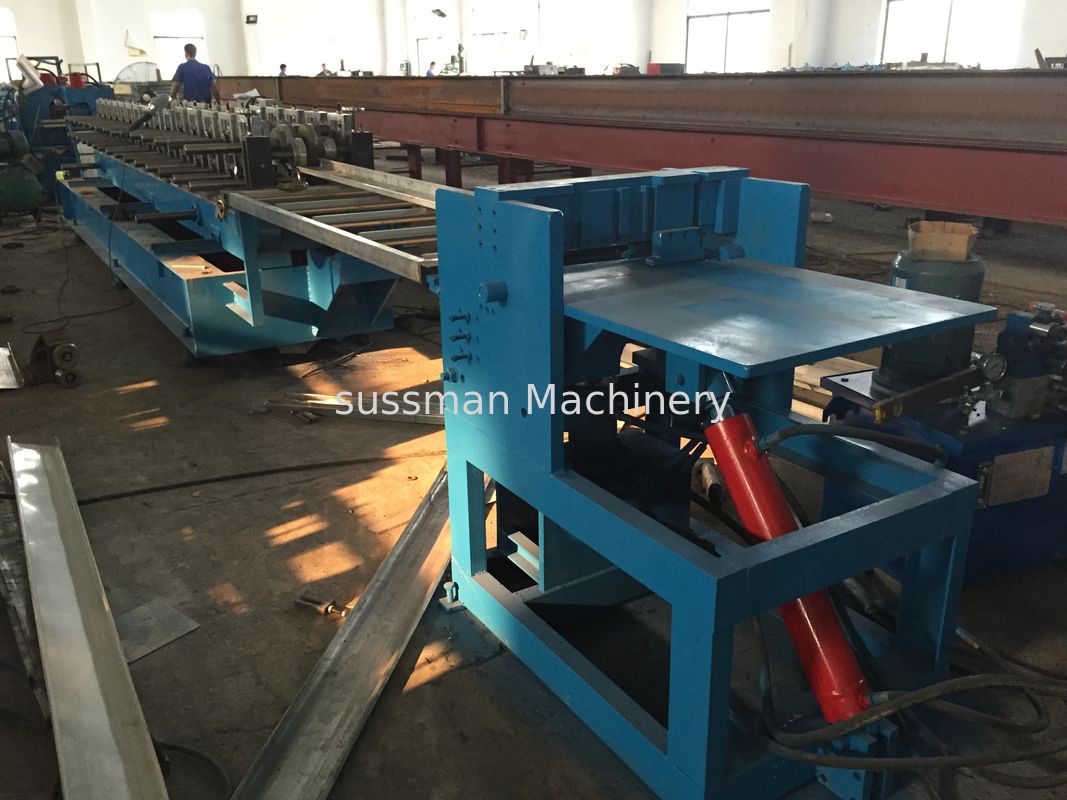

Machine Photo
Gearbox Transmission Door Frame Roll Forming Machine High Speed
Gearbox Transmission Door Frame Roll Forming Machine High Speed



Production process

Gearbox Transmission Door Frame Roll Forming Machine High Speed

Loading pictures



Gearbox Transmission Door Frame Roll Forming Machine High Speed
