7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min

China 7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min supplier
7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min supplier 7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min supplier

Large Image :  7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CE SGS ISO
Model Number: SM-GT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 60days after deposit
Payment Terms: T/T L/C
Supply Ability: 10 sets per months
Contact Now
Detailed Product Description
Material Thickness: 0.3-0.8mm Forming Speed: 12-15 M/min
Main Motor Power: 7.5Kw Forming Stations: 16 Stations
Press Mould: Yes Hydraulic Power: 5.5KW
Transmission: 1.2inch Chain Driven

7.5Kw Main motor power Roof Tile Roll Forming Machine , Glazed Tile Making Machine



Glazed Tile Technical Parameter

1.   Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2.   Transmission way: single chain
3.   Transmission material: 45# steel, high frequency quenching
4.   Material of blad: Cr12, quenching treatment
5.   Capacity of Decoiler: 3 ton passive decoiler
6.   Forming Speed: 12-15m/min
7.   Roller Groups: 16 stations upper and 16 stations down
8.   Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9.   Feeding material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw
12. Hydraulic power: 5.5Kw



Glazed Tile Main Components


     S.N

   Equipment name


   Quantity

      1.

    5T passive un-coiler


    1 set

      2.

    Main roll forming machine 16 stations drived by chain


    1 set

      3.

   Hydraulic cutting


    1 set

      4.

    Control system (including control box)


    1 set

      5.

   Hydraulic station



      6.

    Out tables


    2 sets

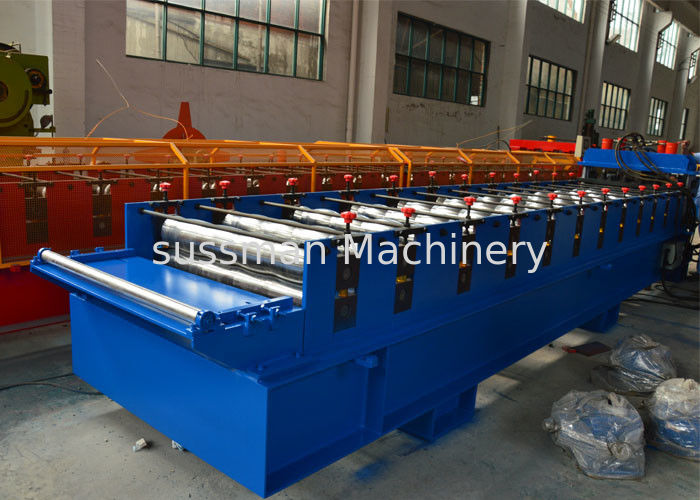

Product Picture
7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min




Working Flow of Glazed Tile

Decoiler----Feeding---Roll forming---Cutting---Run out tables


7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min


Application

This type of roll forming machine has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

Loading Pics

7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min

7.5Kw Main motor power Roof Tile Roll Forming Machine with 12-15m/min
