23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min
  • 23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min
  • 23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min
  • 23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min
  • 23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min

23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE
Model Number SM-PUC
Product Details
Decoiler:
5 Ton Manual
Linear Speed Of Production:
2-6m/min
Thickness Of Steel:
0.3-0.8mm
PU Thickness:
30-200mm
Foaming And Curing:
Double Rubber Belt
Core Density:
40-42 Kg/m2
High Light:

Polyurethane Sandwich Panel Line

,

Polyurethane Sandwich Panel Manufacturing Line

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
80-100 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Product Description

Linear Speed 2-6m/min 23m Belt PU Polyurethane Sandwich Panel Production Line Aluminum Foil







Technical Parameter



Suitable material color steel sheet
Thickness of raw material 0.3—0.8mm
Yield strength of material 235Mpa
Speed about 2-6m/min
Step distance adjustable according to requirement (>=250mm)
Power Requirement Main motor power: 45kw (Depend on final design)
Hydraulic station power: 5.5Kw (Depend on final design)
Uncoiler's loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)
Controlling system Mitsubishi PLC & converter
Machine's size about 18m×1.5m× 1.4m (Depend on final design)








Machine Compositions:
Serial Componet Qty
1 Decoiler 2 sets
2 Panel Roll Forming Machine 2 sets
3 PU Foaming & Injecting Machine 1 set
4 Belt Conveyer 1 set
5 Automatic Tracking Cutter 1 set
6 Product Table 1 set
7 Control Cabinet 1 set







Product features of pu sandwich panel production line


1. Wide application: Ddouble sided color steel tile, one side color steel, the other side soft material panel, one side soft material panel, etc.
2. Fully automatic
3. Technology advantage: The whole line is designed by adopting European technology and developed by our company, can reduce the cost, and improve the machine strength, accuracy and stability.
4. The electrical control system adopts international advanced brand, reliable and less malfunction.
5. The pu sandwich panel is more smooth and has better core density.







Application:



1. PU Sandwich Panel-------inside wall decorative panel, cold room panel, ceiling, roof insulaion panel, wall insulation panel, prefab house
2. Air duct-------central air-conditioning air duct
3. Pipeline insulation, tank insulation







Profiles of PU Ceiling



23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min 0







Sample of PU



23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min 123meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min 2

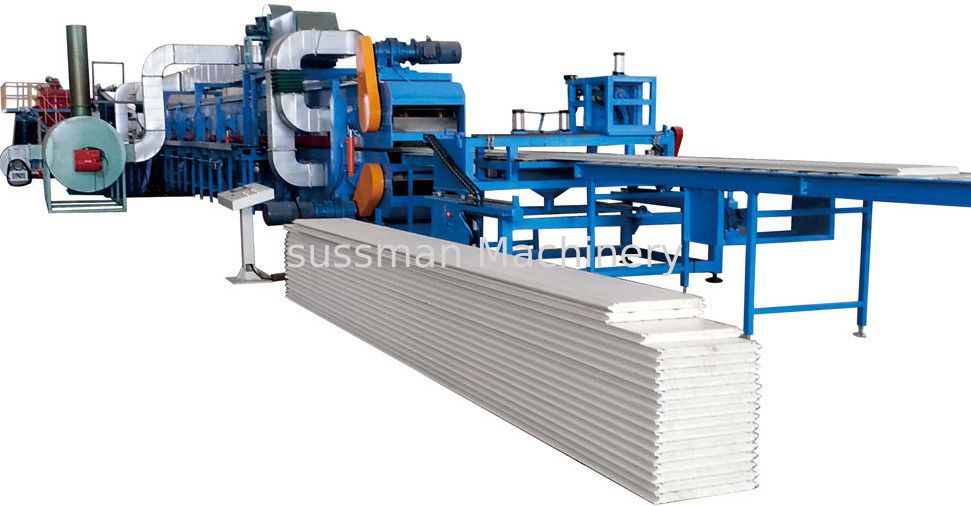

Machine Photo

23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min 3






Company Introduction



Sussman Machinery is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

23meters Belt Length PU Sandwich Panel Production Line With Speed 2-6m/Min 4
