12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering

China 12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering supplier
12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering supplier 12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering supplier 12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering supplier

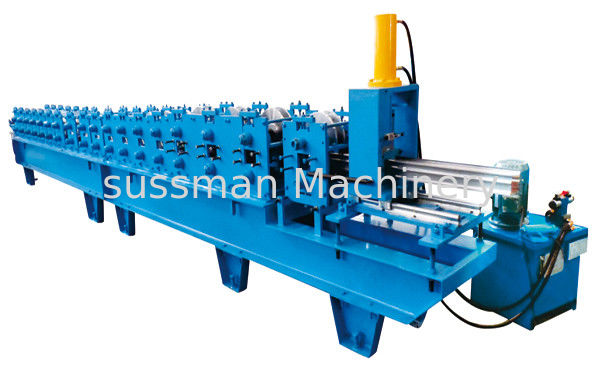

Large Image :  12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CE
Model Number: SM-SD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 60days after deposit
Payment Terms: T/T L/C, D/P, Western Union, MoneyGram
Supply Ability: 10 sets per months
Contact Now
Detailed Product Description
Material Thickness: 0.7-1.2mm Galvanized Coils Forming Speed: 12-15 M/min
Main Motor Power: 7.5Kw Forming Stations: 12 Stations
Working Speed: 12-15m/min Drive System: Chain Drive
Feeding Width: 184mm

12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering





Why Choose Us


1. We as a manufacturer are specialized in all kinds of roll forming machine.

2. Good experience of 10 years to make roll forming machine.

3. Good experience for export more than 80 countries.

4. Provide best price,good quality and fast delivery.

5. Good aftertsales-service and working life is more than 10 years




Shutter Door Technical Parameter

1.   Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )
2.   Transmission way: single chain
3.   Transmission material: 45# steel, high frequency quenching
4.   Material of blad: Cr12, quenching treatment
5.   Capacity of Decoiler: 3 ton passive decoiler
6.   Forming Speed: 12-15m/min
7.   Roller Groups: 12 stations
8.   Roller Material: GCr15, high frequency quenching treatment, HRC58-62
9.   Feeding material: galvanized steel or black steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw

12. Hydraulic power: 5.5Kw


Shutter Door Main Components



     S.N

   Equipment name


   Quantity
      1.

    3T passive un-coiler


    1 set
      2.

    Main roll forming machine



    1 set
      3.

    Fly saw cutting


    1 set
      4.

    Control system (including control box)


    1 set
      5.

    Out tables


    2 sets


















Advantage for Shutter Door

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable



Working Flow of Shutter Door

De-coiler—feedingwithguide——→main roll forming machine—→flysaw cutting —→ run out table


Customes Visiting
 12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering



Loading Pics
12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering

12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering12 Stations Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Edge Covering
