High Speed 0.8-1.5mm Galvanized Steel Roll Forming Equipment For Smoke Fire Damper Blade

China High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade supplier
High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade supplier High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade supplier High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade supplier High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade supplier

Large Image :  High Speed 0.8-1.5mm Galvanized Steel Roll Forming Equipment For Smoke Fire Damper Blade

Product Details:

Place of Origin: China
Brand Name: SUSSMAN
Certification: SGS.CE.ISO
Model Number: SS-FD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 60-90 working days after deposit
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: 0.8-1.5 Galvanized Steel Sheet Material Thickness: 0.8-1.5mm
Forming Stations: 16 Stations Roller Material: 45# Steel With Quenching 60mm Shaft
Dirve System: Gearbox Drive Power Supply: 380V, 50Hz, 3Phase
Forming Speed: Up To10m/min

High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade







 Technical Parameter





Items

Specifications

Material of coil

Material Thickness

0.8-1.5mm

Un Coiler

3 tons manual

Forming system

Rolling Speed

About 10m/min

Roller Stations

About 1stations

Roller Material

Gcr15 coated with chrome



Shaft diameter

65mm

Maim Motor Power

11kw

Pinching motor

2.2kw

Motor cutting Power

7.5kw

Cutting

system

Material Of Cutting

CR12mov with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blades

3 sets

Electrical control system

Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s requirey

Control System

PLC (Panasonic) as list in the note



Weight

About 8 tons



Way Of Drive

1.2 inch chain









 Main Components



Machine list



ton passive de-coiler

1 set



Leveller

1 set



Punching

4 sets



Main roll forming machine

1 set



PLC Control box

1 unit



Hydraulic station

1 unit



Out table

2 units





Advantage of Machine


1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable



     During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
     We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.





Working Flow of Roll Forming Machine





 De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table














Profile of product

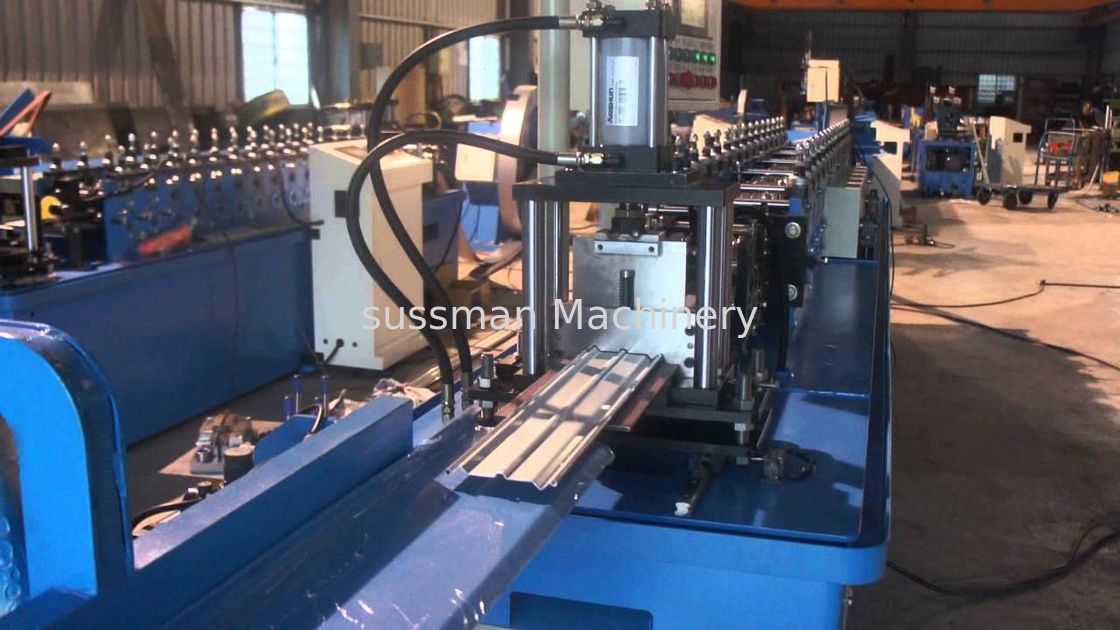

 Photo Gallery





High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade







High Speed 0.8-1.5mm Galvanized Steel  Roll Forming Equipment For Smoke Fire Damper Blade

















Loading pictures
