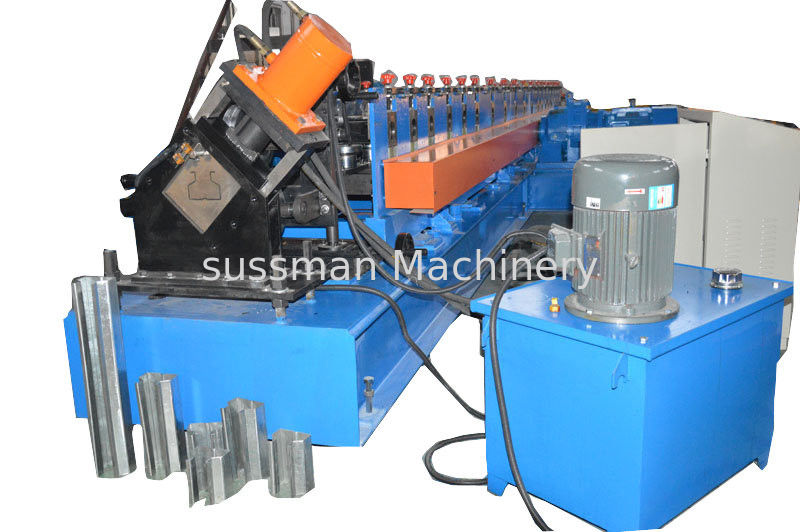

High Speed Rack Roll Forming Machine Worm Gear Box Transmission
  • High Speed Rack Roll Forming Machine Worm Gear Box Transmission
  • High Speed Rack Roll Forming Machine Worm Gear Box Transmission
  • High Speed Rack Roll Forming Machine Worm Gear Box Transmission
  • High Speed Rack Roll Forming Machine Worm Gear Box Transmission

High Speed Rack Roll Forming Machine Worm Gear Box Transmission

Place of Origin China
Brand Name SUSSMAN
Certification SGS,CE.ISO
Model Number SS-BB
Product Details
Name:
Box Beam Roll Forming Machines
Material:
Galvanized Steel Plate
Material Thickness:
1.0mm-2.5mm
Forming Stations:
15 Stations
Roller Material:
GCR12 Bearing Steel
Dirve System:
Chain Drive
Power Supply:
440V, 60Hz, 3Phase
Forming Speed:
8-10m/min
Machine Weight:
About 8 Tons
Machine Size:
12mx1.4mx1.6m
High Light:

racking roll forming machine

,

metal roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
standard packing
Delivery Time
70 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

High Speed Rack Roll Forming Machine Worm Gear Box Transmission



 Technical Parameter

 Forming speed: 0~15M/Min

Product speed: 8~10M/min

Roller material: GCR12 bearing steel

Forming stations: 15 stations + 4 fold ed machine

Shaft diameter: 75mm

Forming structure: Guiding column,chrome-plated

Machine base frame: tube welding structure ,milling gauntry,punch holes automatic

Transmission type: worm gear box

Motor power of main machine: 7.5KW*2sets

Bearing: HRB brand ,needle roll bearing, taper bearing

Bolt: 8.8 grades

Weightabout 8 tons

Cutting die : Cr12MoV

Profile: +/-0.5mm as drawing

Cutting Length Tolerance + / - 1 mm



Main Components



No.

Item Name

Quantity

Remark

1

Manual de-coiler

1 set

3 tons

2

Leveling machine

1set

Wannan motor

3

Cutting device

1 set

Engineer define

4

Punching device

2 sets

Hydraulic Prepunching

5

Roll Forming Machine

1 set

¢75mm

6

Cutter mold

6 units

Engineer define

7

Hydraulic station

1 set

Engineer define

7

Product stand table

5 sets

2 m*5

8

Folded machine

1 set

¢75mm *4

9

Tool Box

1 box

standard

10

Books

1 book

Use manual, Wire diagram,

Machine layout drawing,

Maintenance book,

11

Spare parts

1 set





Roll Formed Pallet Rack Advantages:

  • Adaptable: Adapts to the weight, volume and size of many products and the teardrop style is interchangeable among different manufacturers. Excellent for warehouses storing products with varying sizes.
  • Convenience: A boltless, easy to assemble product. Provides great stock management with direct access to each pallet. Because the clips can be moved quickly, shelves can be easily changed to accommodate various heights and load sizes.
  • Cost-Effective: Less expensive and more adaptable than structural steel racks, the cost provides a good return on investment. The roll-formed design, using flat rolled carbon steel, still provides strength necessary for most applications.

Working Flow of Roll Forming Machine







Manual de-coiler-->leveling machine -- roll forming machine –Cutting device–>Product Stand Tables





working flow.jpg







 Photo Gallery

box beam roll forming making machine.jpg

 box beam roll forming machine.jpg
