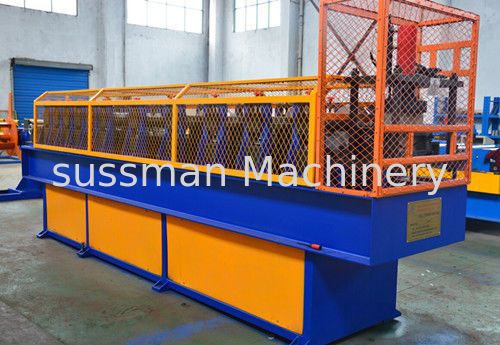

High Speed Valley Tray Making Roll Forming Machine PLC Control
  • High Speed Valley Tray Making Roll Forming Machine PLC Control
  • High Speed Valley Tray Making Roll Forming Machine PLC Control
  • High Speed Valley Tray Making Roll Forming Machine PLC Control

High Speed Valley Tray Making Roll Forming Machine PLC Control

Place of Origin China
Brand Name Sussman
Certification SGS.CE.ISO
Model Number SM-VT
Product Details
Name:
Valley Tray Roll Forming Machine
Material:
0.3-0.6mm Colour Coated Steel Sheet
Material Thickness:
0.3-0.6mm
Forming Stations:
13 Stations
Roller Material:
45# Steel With Quenching 60mm Shaft
Dirve System:
Chain Drive
Power Supply:
380V, 50Hz, 3Phases
Forming Speed:
Up To10-15m/min
Machine Weight:
About 5 Tons
Machine Dimension:
3.5mx0.16mx0.15m
High Light:

plate rolling machine

,

tube roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
plastic film and steel wire
Delivery Time
60 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

High Speed Valley Tray Making Roll Forming Machine PLC Control





 Technical Parameter



Item NO



Description



Offered specification

1.0

 Roll forming machine



1.1

Rolling speed

10-15m/min(not include cutting time)

1.2

Rolling thickness

0.3-0.6mm

1.3

Raw material

Colour coated steel sheet

1.6

dimension

3500×1600×1500(mm)

1.7

Effective width

290mm

1.8

Roller stations

13 stations



1.9

Roller material

45#forge steel, coated with chrome

1.10

Shaft diameter

Φ70mm ,material is 45# forge steel

1.11

Transmission

By chain 1 inch

1.12

Material of chain

45# forged steel with frequency quenching, 12A

1.13

Material of cutting

Cr12Mov with quench HRC58-62°

1.14

Tolerance

6m+-1.5mm

1.15

Frame

H type steel



 Main Components





No

Name

quantity

1

3 ton passive de-coiler

1 set

2

Main roll forming machine

1 set

3

Control box

1 unit

4

Hydraulic station

1 unit

5

Out tables

2 units



Working Flow of Roll Forming Machine



 De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table










Profile of product








 Photo Gallery

High Speed Valley Tray Making Roll Forming Machine PLC Control 2

High Speed Valley Tray Making Roll Forming Machine PLC Control 3
