High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission

China High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission supplier
High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission supplier High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission supplier High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission supplier

Large Image :  High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Roller Stands: 13 Stands Main Motor Power: 7.5Kw
Hydraulic Cutting Power: 4Kw Machine Weight: About 3.5 Tons
Machine Dimension: 3500mm X 500mm X 800mm Warranty: 12 Months

High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission





1. Technical Parameter



Material: galvanized coils or black steel

Material thickness: 0.3-1mm

Main motor power: 7.5Kw

Hydraulic cutting power: 4Kw

Drive system: chain drive, 1 inch single chain

Roller material: 45# steel

Shaft material: 45# steel

shaft diameter: 60mm

cutting blade material: Cr12

Power supply: 380V, 50Hz, 3Phase (or as per requirement)

Forming stations: 10 stations

Machine weight: about 3.5 Tons

Machine dimension: 3500mm(L)x500mm(W) X900mm(H)





2. Machine Parts List



3 ton passive decoiler 1 set
Main roll forming machine 1 set
PLC control box 1 unit
Hydraulic station 1 unit
Passive out tables 2 units





3. Working Flow



Decoiler -Feeding- Main Roll Forming - Hydraulic Cutting - Outer Table







4. Profile Drawing (Based on Clients's Requirement)

High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission

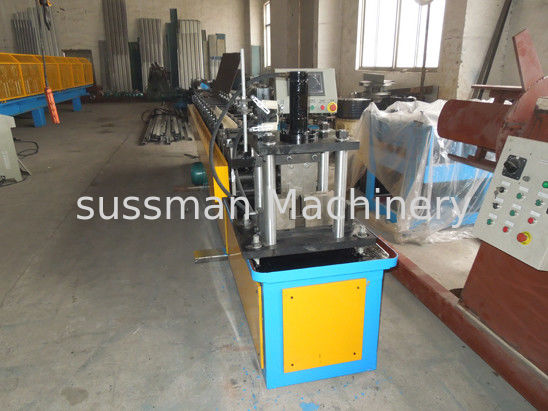

5. Machine Photo



High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain TransmissionHigh Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission



High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain TransmissionHigh Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission




6. Package and Delivery



Packed with film and steel, the machine can be loaded in one 20GP Container.

High Speed 3 Phase Metal Steel C Stud Track Roll Forming Machine Chain Transmission



7. After-Sales Services



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Suhssman provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts.





The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipments:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
