Professional Wall Angle Roll Former Machine 7.5KW 380V 50HZ

China Professional Wall Angle Roll Former Machine 7.5KW 380V 50HZ supplier
Professional Wall Angle Roll Former Machine 7.5KW 380V 50HZ supplier Professional Wall Angle Roll Former Machine 7.5KW 380V 50HZ supplier

Large Image :  Professional Wall Angle Roll Former Machine 7.5KW 380V 50HZ

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-SM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Machine Weight: About 3.5 Tons Material Thickness: 0.7-1.0mm Galvanized Sheet
Profile Sizes: 20-100mm Rolling Speed: About 12m/min
Main Motor Power: 7.5KW Material Of Cutting: CR12
Size Of Machine: Length 5500mm* Width 600mm* Height 1000m

Professional Wall Angle Roll Former Machine 7.5KW 380V 50Hz ​



Company information



We have more than 10 years experience specialized in roll forming machine, such as production lines for wall &roof sheet, color steel tile, C&Z&Wshape purlin and floor decking sheet as well as production line for all kinds of sandwich panels, curving machines for roof sheets. We also supply production lines of guardrail sheet for expressway, shutter doors,garages doors downpipe. Besides, we devoted to the research and development of various kinds of other products related to steel structure, such as hydraulic press brake machine, shearing machine, slitting machine, etc



1. Technical Parameter



Material thickness: 0.7-1.0mm galvanized coils or black steel

profile width: about 20-100mm

rolling speed: 10-15m/min

roller stations: 9 stations

roller material: 45# steel, with quenching 60mm shaft

main motor power: 7.5Kw

hydraulic cutting power: 4Kw

cutting blade material: Cr12

power supply: 380V, 50Hz, 3Phase

machine weight: about 3.5Tons

machine size: Length 3500mm* Width 500mm* Height 800mm



2. Working Flow



Feeding with guide—Rollforming——Cutting—Products collecting



3. Machine Components



 3 ton passive decoiler  1 set
Main roll forming machine  1 set
Hydraulic cutting 1 set
PLC control box  1 unit
Hydraulic station 1 unit
Out table 2 units

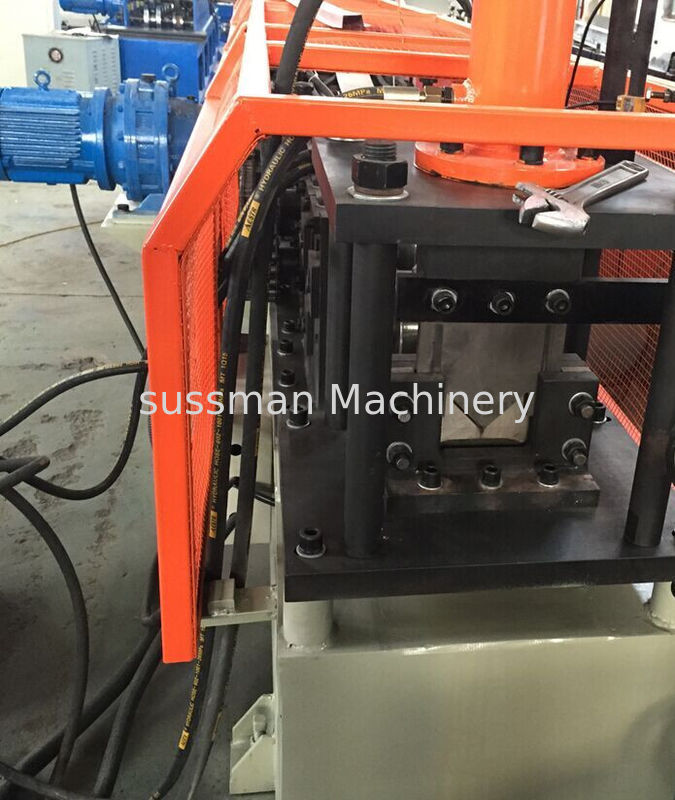

4. Machine Photo

Professional Wall Angle Roll Former Machine 7.5KW 380V 50HZProfessional Wall Angle Roll Former Machine 7.5KW 380V 50HZ

Professional Wall Angle Roll Former Machine 7.5KW 380V 50HZProfessional Wall Angle Roll Former Machine 7.5KW 380V 50HZ




6. Commercial Conditions


1.Payment terms

40 % deposit, then T/T 60% after the inspection of the equipments by the Buyer or the Buyer’s representative at the Seller’s factory, but before shipment;

1.Delivery time: 60 days after received the payment

2.Warranty Period:
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
