Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations

China Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations supplier
Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations supplier Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations supplier

Large Image :  Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-SM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 50 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
De-coiler: 3 Tons Manual Forming Speed: 10-15m/min
Roller Material: GCr15 Shaft Diameter: 75mm
Main Motor Power: 7.5Kw Hydraulic Cutting Power: 4Kw
Machine Weight: About 3 Tons Machine Size: 6000mmx 800mm X 900mm

Material Thickness 0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations

Machine Components


3 tons manual de-coiler 1 set
Main roll forming machine 1 set
PLC control box  1 unit
Hydraulic station 1 unit
Cutting device 1 unit
Punching device 1 set
Out table  2 units
Spare parts 1 set



Technical Process

Decoiler- Punching- Feeding- Roll forming- Cutting- Run out table


Technical Parameter

1. roller stations: 13 stations
2. forming speed: 10-15m/min
3. material thcikness: 0.5-1.5mm
4. roller material: GCr15, HRC55-60
5. shaft diameter: 75mm
6. shaft material: 45# steel
7. main motor power: 7.5Kw
8. hydraulicpower: 5.5Kw
9. PLC: Panasonic
10. Machine size: 6000mmx 800mm x 900mm
11. machine weight: 3 tons
12. cutting blade material: Cr12Mov
13. drive way: 1 inch chain drive
14. cuttingtype: hydraulic cutting

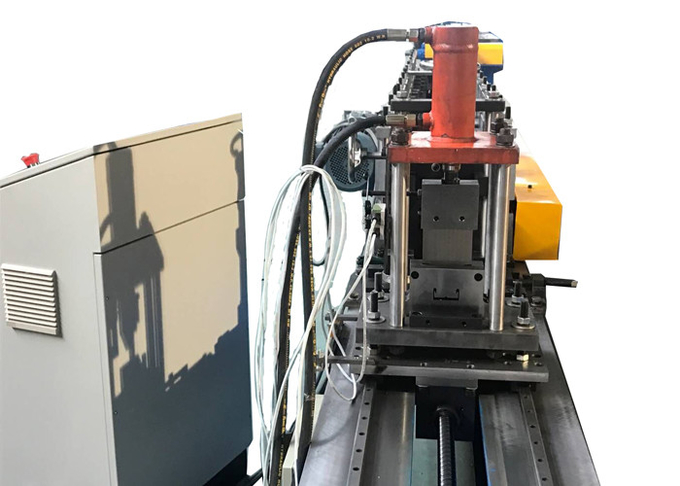

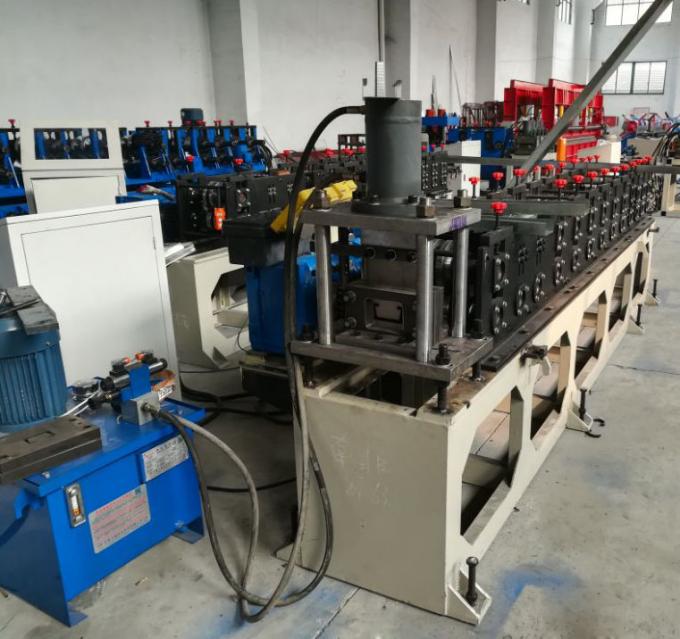

Machine Photo

Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations
Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations

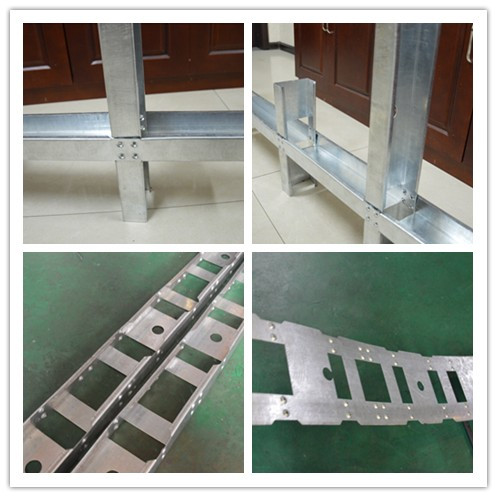

Profile  reference

Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations

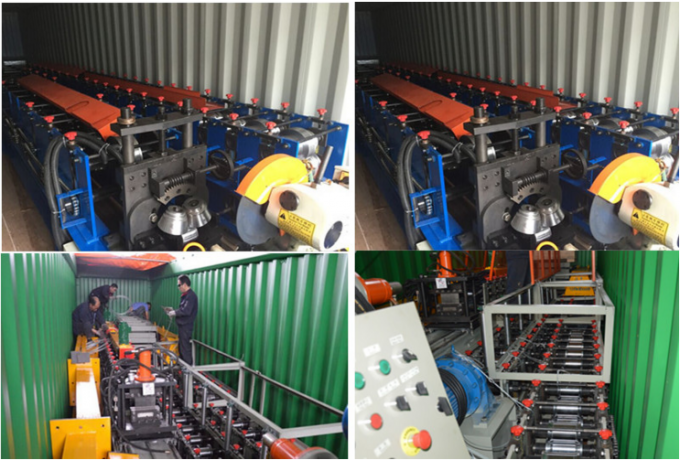

Package&Delivery

Packaging Details:
1.main body with air bubble plastic package.
2.spare parts with wooden box
Delivery Detail: 60 days for stud and track roll forming machine


Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations

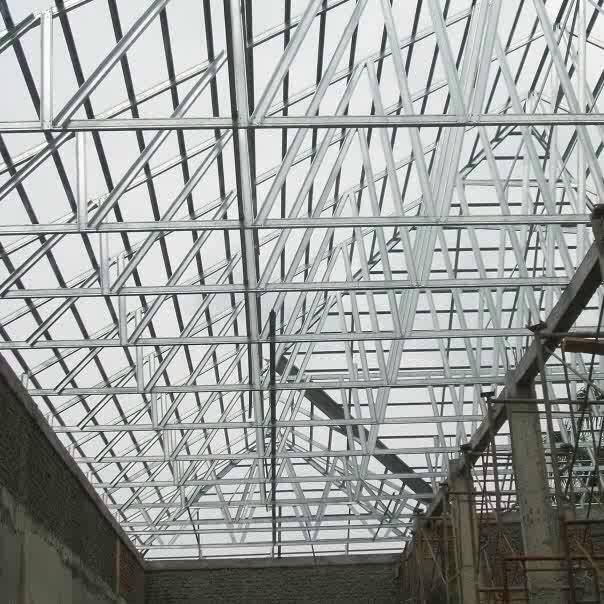

Application
Metal Stud and Track have become a competitive and widely used product in the building industry giving a fire proof and easily erected system for partitioning and various other uses. The component parts of the system are ideal rollform applications. Metal Track and Studs profiles are used for Dry wall partition and ceiling suspension in commercial and residential
.
Material Thickness0.5-1.5mm Cold Roll 45# Steel Stud And Track Roll Form Machine With 13 Stations

Our Service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc


Our Company

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
