CE Certificated Galvanized Steel Angle Roll Forming Machine with PLC Panasonic
  • CE Certificated Galvanized Steel Angle Roll Forming Machine with PLC Panasonic

CE Certificated Galvanized Steel Angle Roll Forming Machine with PLC Panasonic

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Cutting Blade Material:
Cr12
Machine Weight:
About 3 Tons
Control System:
PLC Panasonic
Roller Stations:
9 Stations
Main Motor Power:
7.5Kw
Hydraulic Cutting Power:
4Kw
High Light:

drywall stud roll forming machine

,

metal stud forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

CE Certificated Galvanized Steel Angle Roll Forming Machine with PLC Panasonic





1. Technical Parameter



  • material thickness: 3mm galvanized sheet G450
  • profile size: 20*20-100*100mm adjustable
  • forming speed: about 15m/min
  • roller stations: about 9 stations
  • roller material: GCr15 steel with quenching 60mm shaft
  • main motor powr: 7.5Kw
  • hydraulic power: 4Kw
  • cutting material: Cr12 with quench treatment
  • main motor power: 7.5Kw
  • hydraulic station power: 4Kw
  • cutting material: Cr12
  • Control system: PLC Panasonic
  • machine size: 5500mmx600mmx1000mm







2. Working Flow

Un-coiler ------ Feeding device ---Punching --- Roll forming ----- PLC control --- Hydraulic cutting----

Run out table





3. Machine Components

3 ton passive decoiler 1 set
servo feeding  1 set
punching press machine  1 set
Main roll forming machine  1 set
PLC control box 1 unit
Hydraulic station 1 unit
Out table 2 Units




4. Profile

CE Certificated Galvanized Steel Angle Roll Forming Machine with PLC Panasonic 0

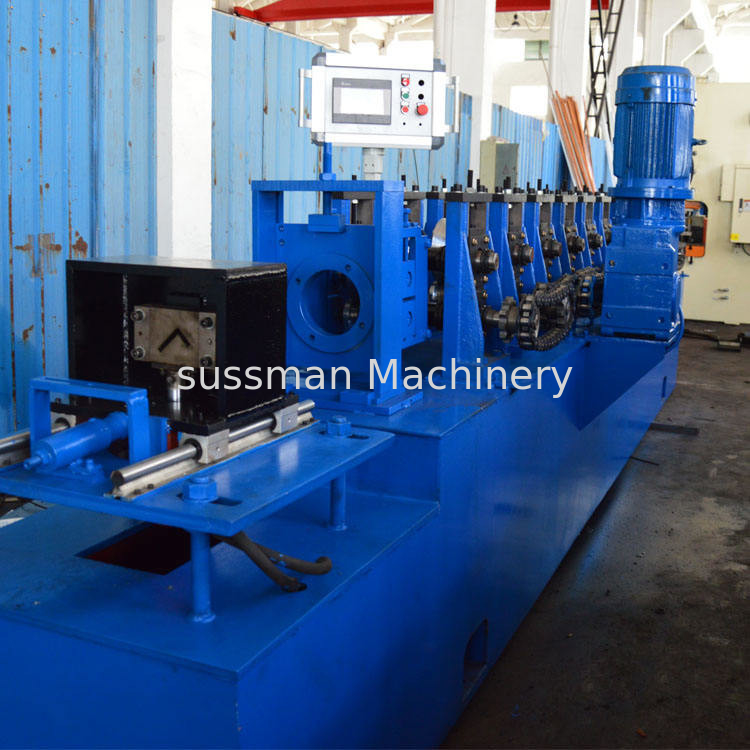

4. Machine Photo

CE Certificated Galvanized Steel Angle Roll Forming Machine with PLC Panasonic 1



Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
